In Creo 2.0 sheet metal ?

sorry for my english ... my mother tongue is french

In solidworks sheet-metal it's a feature to merge the corners when the part is bend/unbend.

I can't find this feature in Creo 2.0 ... Do you know if it's possible ?

Thank you for your help 🙂

Antonio

https://dl.dropboxusercontent.com/u/16216556/bended_box.jpg

https://dl.dropboxusercontent.com/u/16216556/wish.jpg


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

gkrishna1-Visitor
1-Visitor
July 31, 2013

Try using flat wall feature,select the edge then sketch the corners as you want them.bending and that merge will be done in one feature.


Translate
RaphMORIN16-Pearl
16-Pearl
August 22, 2013

Bonjour,

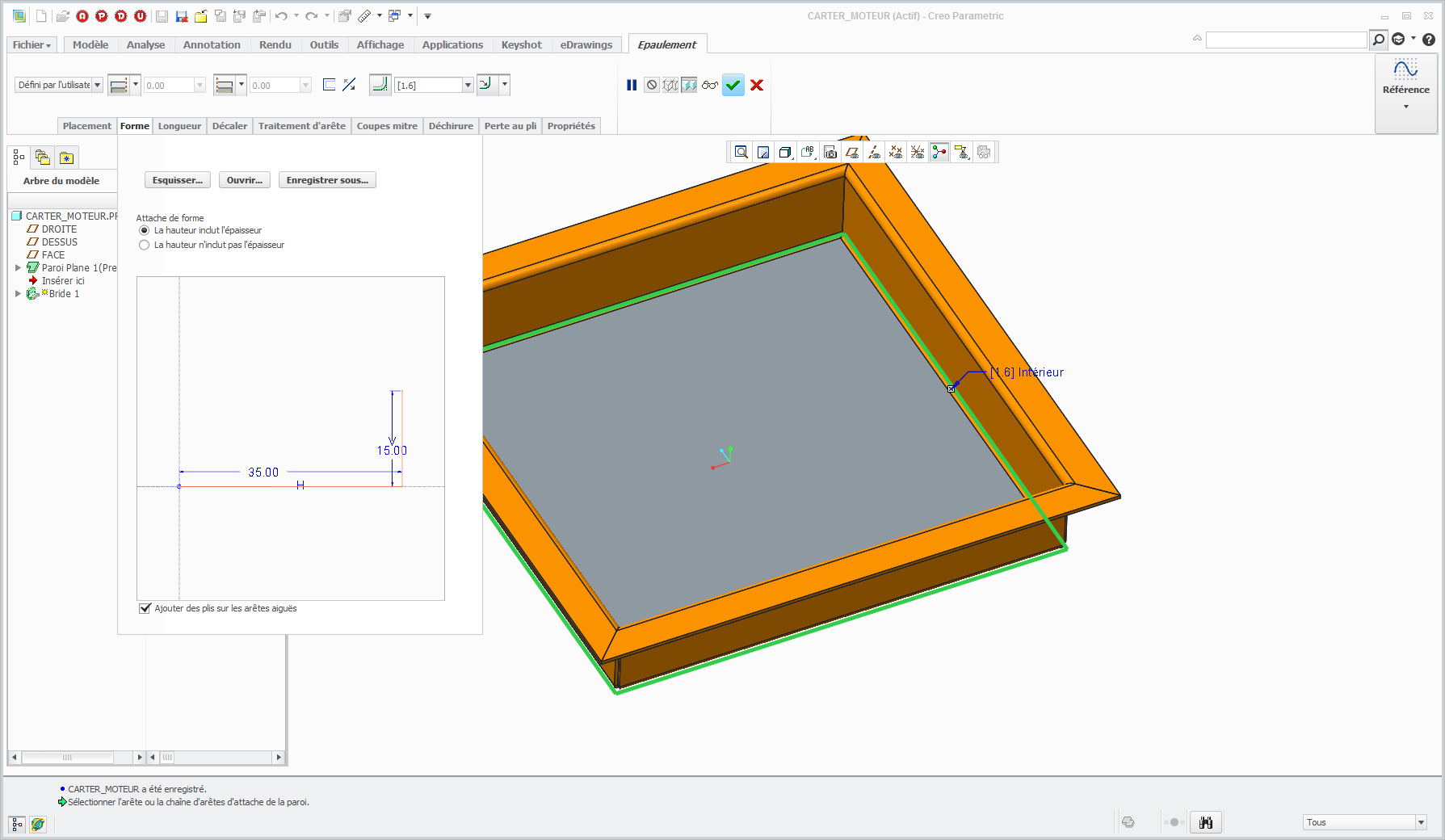

Pour faire cela, il suffit de créer 2 fonctions : une première consiste en un plan pour le fond. Puis créer une fonction "bord plié" en sélectionnant le contour du plan. Au lieu de laisser la forme standard du bord plié, choisir d'esquisser le bord avec les dimensions voulues. Les coins sont ainsi jointifs.
