Question

in creo changing unit mm to inch drawing view distorted

  • June 13, 2024
  • 2 replies
  • 1286 views

Hi,

In Creo parametric if I change unit mm to inch in the part file after that if I check that detailing file some view have been distorted, section arrow becomes big and some views are missing.

2 replies

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald III
23-Emerald III
June 13, 2024

For us to help you better, can you provide screen shots, attach files?

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
June 13, 2024

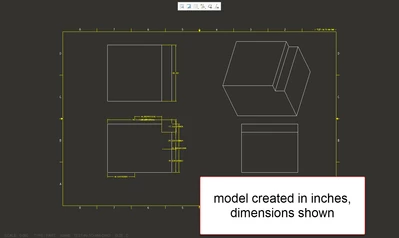

I did a quick test. I made a part in inches. I just used random numbers.

I created a drawing, showed the dimensions. I didn't try to make a good drawing,

I then went back to the model, changed the part from inches to mm.

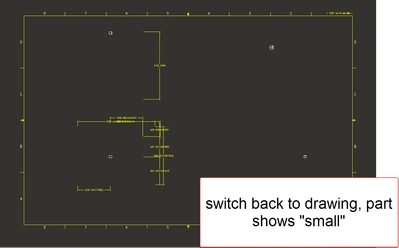

Initially, when I returned to the drawing the views were "small" compared to the original.

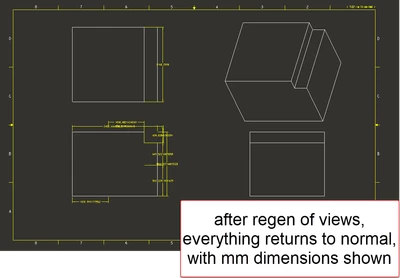

I regened the drawing views and all came back as if nothing had changed.

See images.




















A
AK_103594914-ParticipantAuthor
4-Participant
June 14, 2024

Hi Stephen,

Thank you for the quick response on this

For small drawings, it is changing perfectly without any issues but if you have 3 sheets and a detailing file containing 100 annotations and in a sheet, some 4 ya 5 detailed views are there that time some views are distorted so this is how can I resolve.

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald III
23-Emerald III
June 14, 2024

Have you tried closing out of the drawing, clearing memory and then reopening the drawing?
