Is it possible to frame a drawing view?

Forum|Forum|11 years ago
February 4, 2015
4 replies
2370 views

Hi, I am a new user, I have a simple doubt:

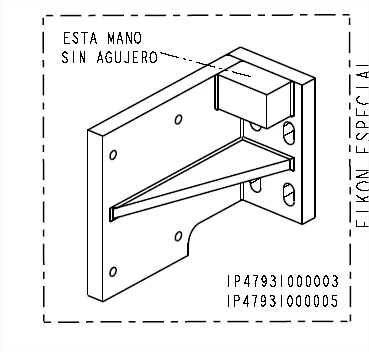

Is it possible to frame a drawing view, as in the attached image, with Creo Parametric 2.0?

Here I made a sketch, but I used other 3D cad programs, that could show the border view with a pair of clicks...

Thank you very much

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2D Drawing

Best answer by dschenken

I think Creo does not do this for primary views. You can sketch a boundary and relate it to a view so it will move with the view.

D

dschenken

Answer

1-Visitor

I think Creo does not do this for primary views. You can sketch a boundary and relate it to a view so it will move with the view.

M

mganzer

2-Explorer

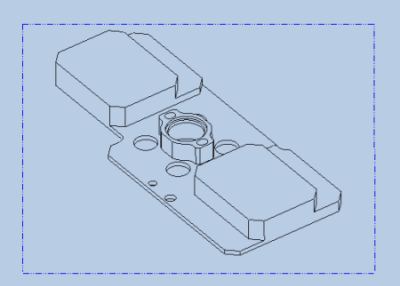

I think they only way you could do this is to sketch the box around the view, change the line style to phantom, or whatever is desired, and then relate the sketched entities to the view. The box will move with the view, but will not re-size around model changes.
