Is it possible to load and model/rep tables into drawings faster?

  • June 28, 2024
  • 1 reply
  • 1253 views

In our harness drawings, we have a table per connector with two repeat regions to display the refdes and the pinout info, kind of similar to HMX drawings.



Is there a fast way to bring in multiple tables and "model/rep" them to the connectors automatically or something?



Currently, we load from file, or copy and paste the number of pinout tables we need, then for each of the two repeat regions, we do a "model/rep" and select the connector.  With large harnesses, we spend a LOT of time doing this.



Thanks!

Creo 9





1 reply

A
anursinghCommunity Manager
Community Moderator
July 4, 2024

Hi @AH_10565398,

Thank you for your question.

Your post appears well documented but has not yet received any response. I am replying to raise awareness. Hopefully, another community member will be able to help.

Also, feel free to add any additional information you think might be relevant. It sometimes helps to have screenshots to better understand what you are trying to do.



Regards,

Anurag

    A
    AH_1056539812-AmethystAuthor
    12-Amethyst
    July 5, 2024

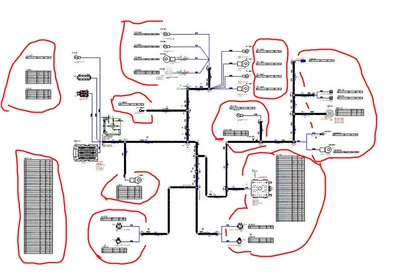

    Hi Anurag!  Thanks a lot for the bump!  I appreciate it.  I don't see how to edit my original post, but here's a screenshot I found online of HMX to illustrate my issue.

    As you can see there are over 20 tables in this drawing.  Our company doesn't want to purchase HMX for the time being, so if this was our harness, we'd manually load in, and model/rep the table template 20 times to each connector.

    It seems like Creo should have a fast and easy way to do this, such as selecting all the connectors and loading the table so it brings in 20 instances or something.  I just can't seem to find it.




    R
    rhahn-210-Marble
    10-Marble
    September 17, 2024

    A couple of tips.

    1) Use nested tables so you only have to do the association once per connector. Assuming you want connector data (ref-des, connector part numbers, etc.) and pin information (terminal, seal, wire circuit number) in different areas. One overall region to link the sub regions to a particular connector.

    2) Create a mapkey (linked to function key) to:

       a) select the table from library to insert and place

       b) select the table (overall) to link than select the connector.



    Not automatic but 5 actions - 1) Function key, 2) mouse click to place table, 3) mouse click to select table, 4) mouse click to select connector, 5) mouse click OK. Someone clever might be able to figure out how to automatically select the table to remove 1 click but beyond me.
