iso weld symbol for staggered weld

  • May 15, 2025
  • 1 reply
  • 799 views

I am using Creo Parametric Release 10.0 and Datecode10.0.4.0

How can the standard ISO weld symbol be used to show a staggered intermitant linear weld. When you add the values for num_of_welds, seg_length_linear and pitch_dist_liner the numbers cross over the staggered Z part of the symbol. There seems no way to move the Z or space the values using spaces to staddle the Z. The symbol is a standalone annotation in the drawing and not used with the weld fuction.

Best answer by Mahesh_Sharma

Hi @rgrant



This is a known limitation, dynamic resizing of weld symbol is only applicable to ‘Weld feature symbol’ not for inserted symbols.



Refer article https://www.ptc.com/en/support/article/CS11621



I hope this will help.



Thanks.

1 reply

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
May 16, 2025

Hi @rgrant



Could you please share an image for better clarification?



Thanks.

R
rgrant6-ContributorAuthor
6-Contributor
May 20, 2025

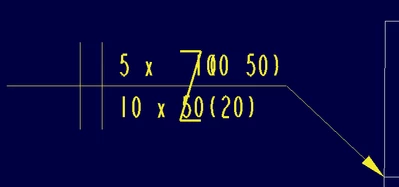

This is just an example of the values, stagged welds would normally be symetrical. If you play with spaces you can get 1 example which works, but it is not just a case of just adding the appropiate values

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
May 27, 2025

Hi @rgrant



This is a known limitation, dynamic resizing of weld symbol is only applicable to ‘Weld feature symbol’ not for inserted symbols.



Refer article https://www.ptc.com/en/support/article/CS11621



I hope this will help.



Thanks.
