Question
Issue concerning this drawing
- October 16, 2016
- 1 reply
- 2150 views

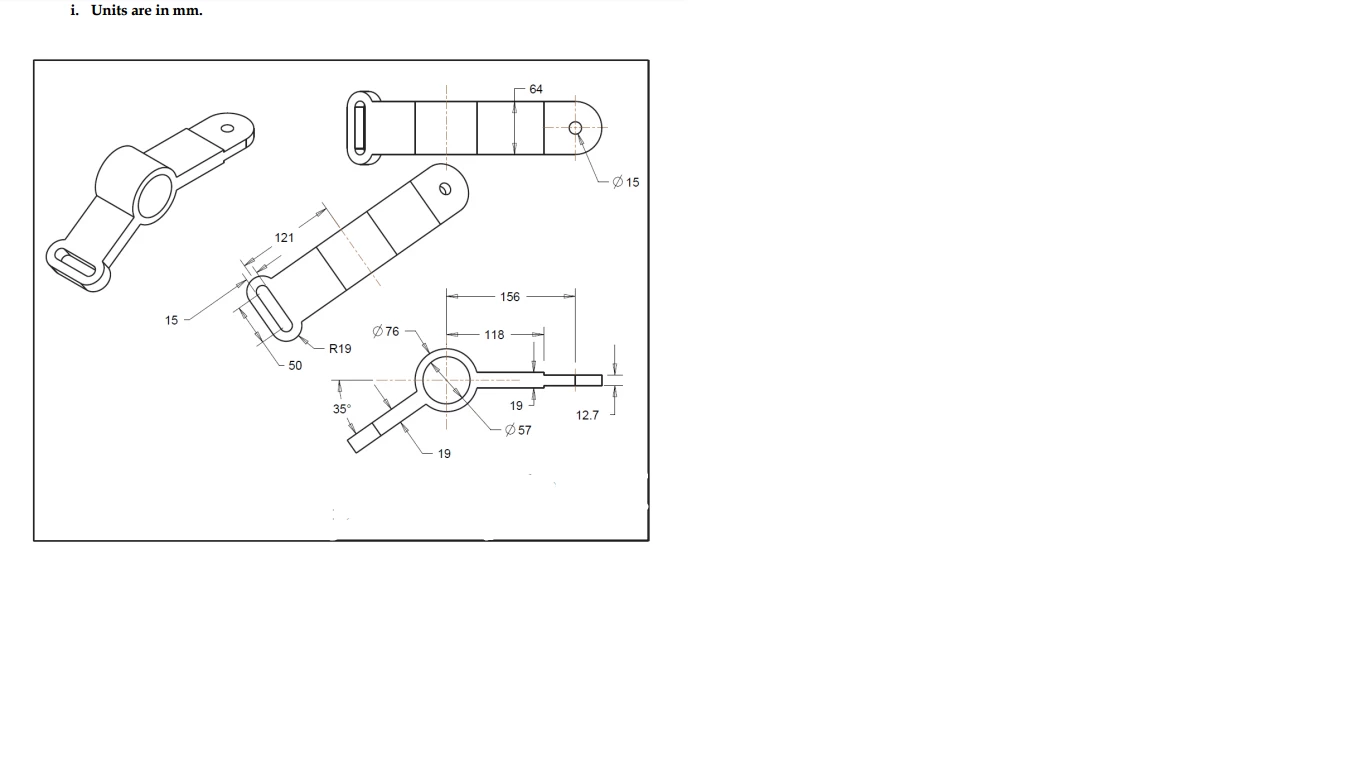

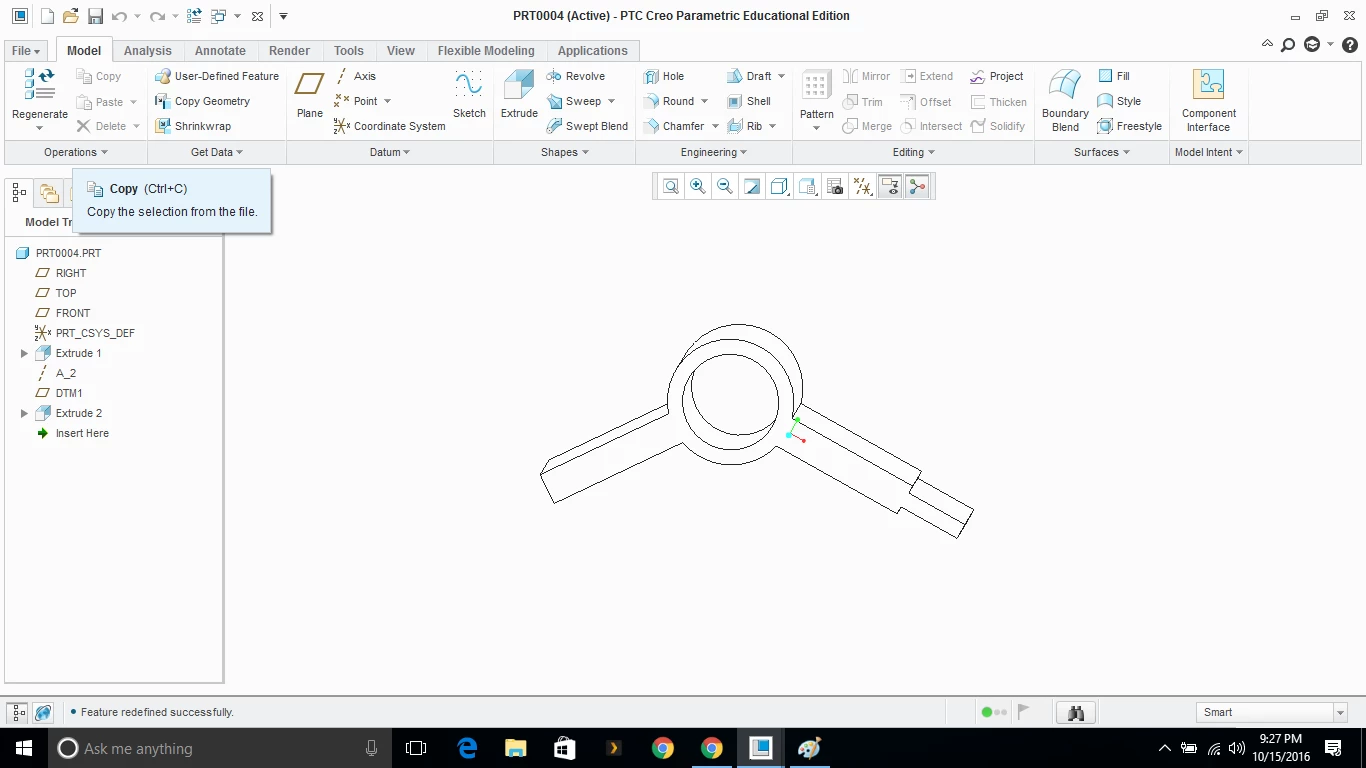

Hi guys, I am having an issue about this drawing I am trying to do. The drawing looks like it's supposed to be on the front plane but I'm not quite sure. Also the extension on the left is on a datum plane 35 degrees and comes out wrong when I did it. I got the shape right, but I'm sure not how to go about making that 35 degrees plane right and have it look right when I'm putting dimensions on creo drawing. Any help would be appreciated
