issue's with sheet metal bend

  • June 2, 2016
  • 2 replies
  • 1988 views

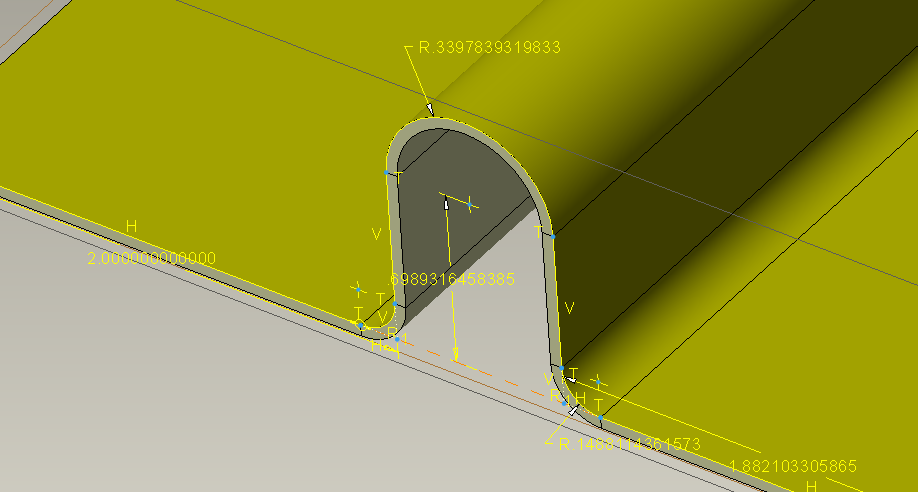

attached picture will give the details


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
June 2, 2016

I would just sketch it as an extrude with thickness.

    M
    mrd10-MarbleAuthor
    10-Marble
    June 3, 2016

    dear stephen,

    thanks for your reply,got it

    Dinesh

    kdirth
    21-Topaz I
    kdirth21-Topaz I
    21-Topaz I
    June 2, 2016

    I agree that extruding with thickness is the ideal way to get the shape you are looking for.

    You can also use 4 flats (one across the top).  Make the length 2 x (thickness + radius).

    There is always more to learn.
    kdirth
    21-Topaz I
    kdirth21-Topaz I
    21-Topaz I
    June 2, 2016

    You could also use the revolve feature.
