Jlink: Export to PDF with PDFExportInstructions.SetProfilePath()

  • February 5, 2018
  • 1 reply
  • 6835 views

Hello,

I want to export a drawing to PDF with Jlink. Here is my code:
PDFExportInstructions exportInstructionsPDF = pfcExport.PDFExportInstructions_Create();
drawing.Export("my_test_file", exportInstructionsPDF);
To set the PDF options, I would like to use the function SetProfilePath():
exportInstructionsPDF.SetProfilePath("C:/myPath/my_profile_file");

But I have no information about the format of the profile file.
Does anyone have the information for this file and the complete PDF options for Creo1, Creo2 and Creo3?

Thank you for your hints Thomas

Best answer by ThomasStep

I set my password in the following way:

                 pdfOption = pfcExport.PDFOption_Create();
        pdfOption.SetOptionType(PDFOptionType.PDFOPT_PASSWORD_TO_OPEN);
        pdfOption.SetOptionValue(pfcArgument.CreateStringArgValue(myPassword));
        pdfOptions.append(pdfOption);

and all other parameters in a similar way.



And now I don't use
exportInstructionsPDF.SetProfilePath("C:/myPath/my_profile_file")

Thank your for your help Thomas

1 reply

M
MartinHanak24-Ruby III
24-Ruby III
February 5, 2018

Hi,



how to get profile file ? Launch Creo, open drawing, Save As *.pdf. In PDF Export Settings dialog box set requested options and click Save button to create file with .dop extension.

T
ThomasStep1-VisitorAuthor
1-Visitor
February 7, 2018

Hello,

That's what I wanted. Thank you.

But I can't find the XML attributes for the following export settings in my profile file my_test_profile.dop (see below):

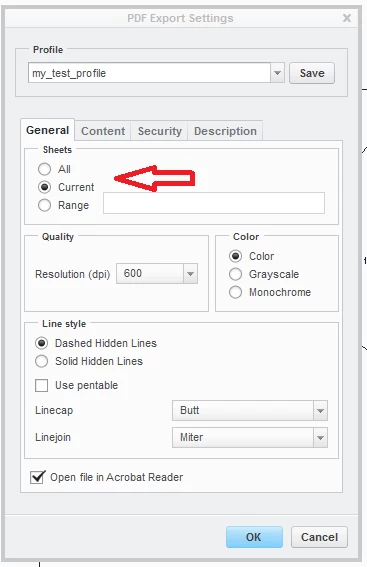

a) General --> Sheets --> All||Current||Range (see PDF Export Settings in pdf_export_settings_general.png)

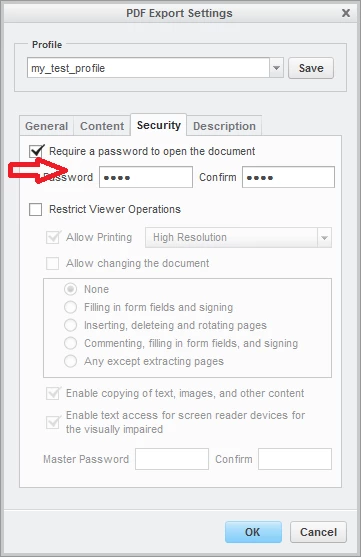

b) Security --> Password/Confirm (see PDF Export Settings in pdf_export_settings_security.png)

Where can I find these settings?
Thank's Thomas



my profile file my_test_profile.dop:

<XML_DOCUMENT xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/">
    <PTC_HEADER>
        <VENDOR>Parametric Technology Corporation</VENDOR>
        <PRODUCT>Creo Parametric 3402016130</PRODUCT>
        <XML_VERSION>1.0</XML_VERSION>
        <HOST_NAME>XXXX</HOST_NAME>
        <USER>xxx</USER>
        <MACHINE_TYPE> Intel64 Family 6 Model 42 Stepping 7  GenuineIntel  3093 MHz</MACHINE_TYPE>
    </PTC_HEADER>
    <IntfProfile export="1" pointer="TRUE">
        <settings pointer="TRUE">
            <PDFConfig_Profile TITLE="my test title"
                               AUTHOR=""
                               LINECAP="0"
                               SUBJECT=""
                               pointer="TRUE"
                               KEYWORDS=""
                               LINEJOIN="0"
                               PENTABLE="0"
                               HYPERLINKS="1"
                               PAGE_WIDTH="0."
                               RASTER_DPI="300"
                               TOP_MARGIN="0."
                               VIEW_INDEX="0"
                               LEFT_MARGIN="0."
                               MODIFY_COPY="1"
                               PAGE_HEIGHT="0."
                               EXPORT_VIEWS="1"
                               MODIFY_PRINT="1"
                               PDFLayerMode="1"
                               ENGLISH_UNITS="1"
                               LAUNCH_VIEWER="0"
                               MODIFY_CHANGE="0"
                               PDFColorDepth="0"
                               PDFRenderMode="7"
                               BOOKMARK_VIEWS="1"
                               BOOKMARK_ZONES="1"
                               ProPDFSaveMode="16"
                               BOOKMARK_SHEETS="1"
                               PDFLightingMode="9"
                               PDFPrintingMode="1"
                               SEARCHABLE_TEXT="1"
                               PDFParameterMode="0"
                               ProPDFExportMode="0"
                               ProPlotPaperSize="0"
                               PDFFontStrokeMode="1"
                               PDFHiddenLineMode="1"
                               BOOKMARK_FLAGNOTES="1"
                               PDFPageOrientation="1"
                               MODIFY_ACCESSIBILITY="1"
                               PDFRestrictOperationsMode="0">
                <RGB SOAP-ENC:Array="[3]">
                    <entry>1.</entry>
                    <entry>1.</entry>
                    <entry>1.</entry>
                </RGB>
            </PDFConfig_Profile>
        </settings>
    </IntfProfile>
</XML_DOCUMENT>

M
MartinHanak24-Ruby III
24-Ruby III
February 7, 2018

Hi,



I created a drawing with 3 sheets and set Range 1-2 in dialog box.

.dop file contains following lines:

<SHEETS SOAP-ENC:Array="[2]">
<entry>1</entry>
<entry>2</entry>
</SHEETS>

To understand sheet management, you have to experiment little bit ...



In case of password, I do not expect that this information can be set in .dop file ...



If you have additional questions, try asking PTC Support.
