Label Type with Rounded Box

Hello,

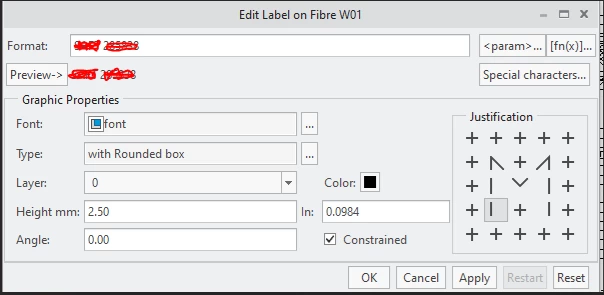

In my Creo schematic file i used a label with Rounded Box type. But during export to PDF i could not get the label text with "Rounded Box". Please suggest me a solution.









2 replies

VladimirN24-Ruby IV
24-Ruby IV
Jun 22, 2023 7:26 PM UTC

Please specify which version of the program you are using.

Translate
PR_106442784-ParticipantAuthor
4-Participant
Jun 23, 2023 4:09 AM UTC

Using Creo Schematic Version 7.0.

I got the reply from PTC support this version doesn't provide some of the features. So planned to upgrade to latest version.

But mean time you can use the option as Print -> Win instead of Export-> PDF.
