Question

Layer rule for datums symbol feature

  • October 11, 2024
  • 1 reply
  • 673 views

In Creo 9 and above what's the config rule "DEF_LAYER" to add "datums symbol feature" into a custom layer? Thank you

1 reply

Catalina
CatalinaCommunity Manager
Community Moderator
October 14, 2024

Hi @ggalli



Thank you for your question!



I’d like to recommend to bring more details and context to your initial inquiry.

It also helps to have screenshot(s) to better understand what you are trying to do in your process.



Please refer to this guideline to make your questions more likely to receive a quick and useful answer.

This will increase your chances to receive meaningful help from other Community members.



Thank you for your participation and please let me know if you need further assistance!



Best regards,

Catalina | PTC Community Moderator
G
ggalli10-MarbleAuthor
10-Marble
October 14, 2024

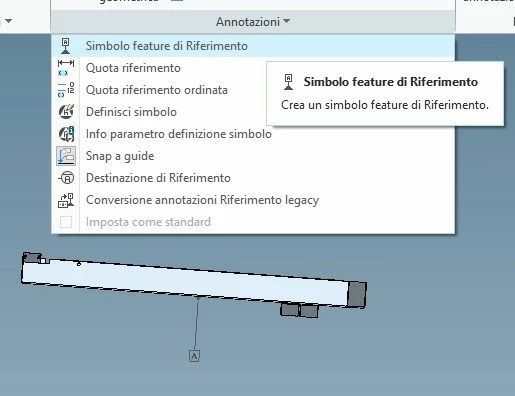

I think there is not much more to explain about my request, however I attach 2 screenshots to make the idea better.

In config.pro I've this options:

! ---------------------------------------------------------------------------
! Livelli
! ---------------------------------------------------------------------------
!!!def_layer
def_layer LAYER_DATUM 1_ALL_PLANES
def_layer LAYER_CSYS 2_ALL_CSYS
def_layer LAYER_AXIS 3_ALL_AXES
def_layer LAYER_POINT 4_ALL_POINTS
def_layer LAYER_CURVE 5_ALL_CURVES
def_layer LAYER_SURFACE 6_ALL_SURFS
def_layer LAYER_FEATURE 7_ALL_FEATURES
def_layer LAYER_DETAIL_ITEM 8_ALL_NOTES_BALLOONS_SYMBOLS_GTOLS
def_layer LAYER_THREAD_FEAT 10_FILETTI
def_layer layer_annotation_element 11_NOTE
def_layer layer_note 11_NOTE



I'm searching for solution to create a new layer for the datums symbol feature, like this "A" symbol:




Thank you all
