Question

Line stock file

  • April 10, 2013
  • 2 replies
  • 1930 views

How to create the line stock file?

Please Explain me

      2 replies

      B
      BrianMartin13-Aquamarine
      13-Aquamarine
      April 26, 2013

      Hi Anand...

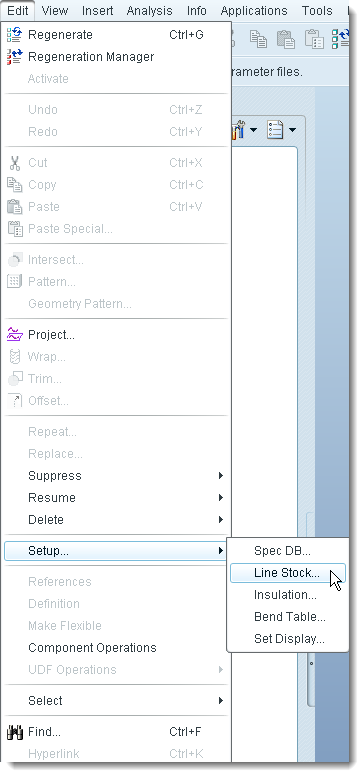

      In piping mode, simply go to Edit->Setup->Linestock as shown below...

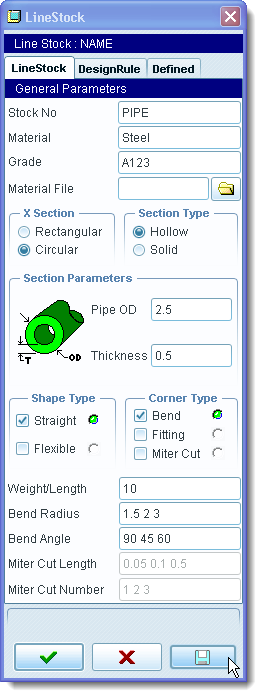

      Next select Create and name your linestock. Set the desired options using the line stock dialog box and SAVE your line stock using the save icon at the bottom of the window. That's really all there is to it. Consult the PTC help files for assistance understanding what all the options in the Line Stock dialog box do!


      Good luck!

      -Brian

      D
      dgrobe2-Explorer
      2-Explorer
      December 29, 2016

      brian, i am wondering, how do i setup the line stock where i can have different angles.. not just 90 when doing a pipe extend.  i do a set start, extend, and extend my pipe 12mm.  then i want to rotate 45, not 90.  how do i get it to do that?
