Line style when exporting to PDF

  • May 4, 2011
  • 1 reply
  • 9028 views

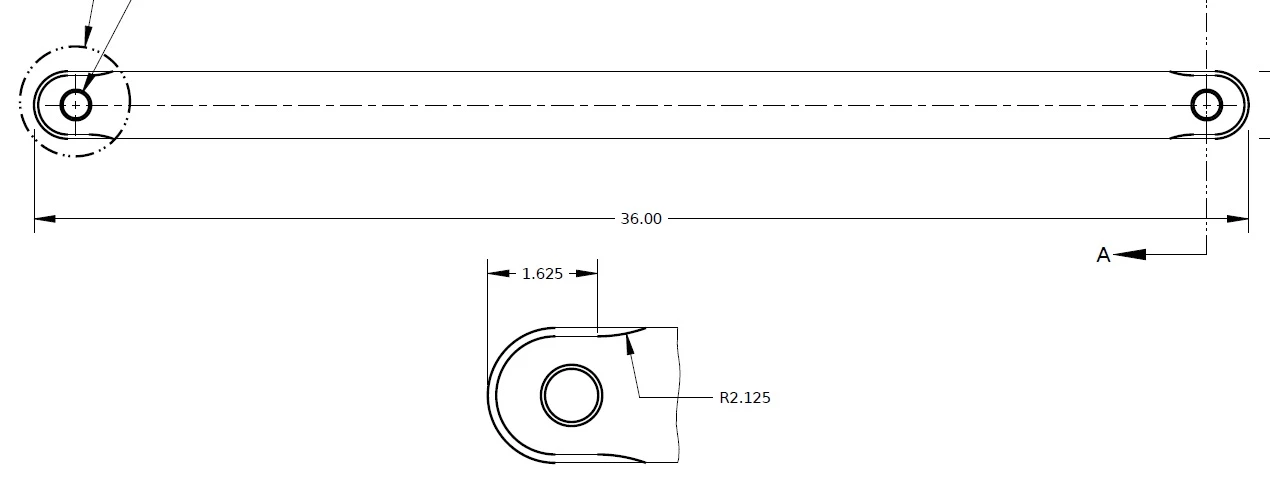

When I export a drawing to PDF every radius is bold while the straight lines are standard. I want everything to look the same. I attached an image below to show what I mean. Anybody know the setting to change in order to fix this?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by VladimirPalffy

Hello Christian

Do you need set configuration options:

pen_table_file path to pentable file (tested pentable file - see attachment)

pdf_use_pentable yes

use_8_plotter_pens yes

Note: Try it and I think you'll be satisfied with the results

Vladimir

1 reply

V
VladimirPalffy14-AlexandriteAnswer
14-Alexandrite
May 5, 2011

Hello Christian

Do you need set configuration options:

pen_table_file path to pentable file (tested pentable file - see attachment)

pdf_use_pentable yes

use_8_plotter_pens yes

Note: Try it and I think you'll be satisfied with the results

Vladimir

C
ChristianSmith1-VisitorAuthor
1-Visitor
May 5, 2011

Very nice. I reduced the thickness of pen 1 but other than that everything was perfect.

Thank you for taking the time to do that.

V
VladimirPalffy14-Alexandrite
14-Alexandrite
May 6, 2011

You are welcome , have a nice day.

Vladimir
