Question

List of text modifiers in drawings

  • November 8, 2016
  • 1 reply
  • 1682 views

Does anyone have a list of the possible modifiers for dimensions (like @+ to shift a text lineup, @O to override). Maybe I'm searching for the wrong terms, but I can't seem to find a list anywhere.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

B
BenLoosli23-Emerald III
23-Emerald III
November 8, 2016

@+ Superscript

@- Subscript

@# ending script change

@O Override

@[ ]@ box test between []

These are all documented in the Wildfire4 Detailed Drawings Help Topic Collection. There may be a CS article that covers them all, I only found some articles that cover a few.

https://support.ptc.com/appserver/cs/view/solution.jsp?n=CS13853

P
psobejko1-Visitor
1-Visitor
November 8, 2016

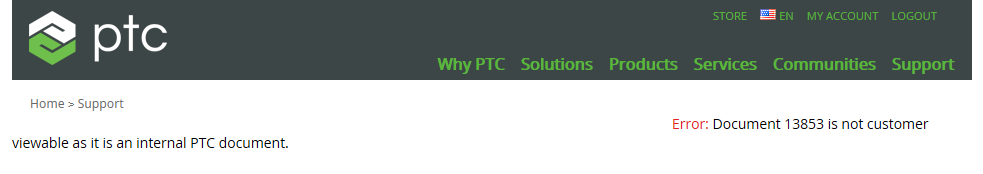

FYI, your link doesn't work for me - says it's a PTC internal document and not customer viewable.

Anyway, I have these two on my list:

@S = display the dimension name instead of value

@o = attach the leader to this location (in multi-line note)
