make visible one axis or plan in creo 2.0

Forum|Forum|9 years ago
November 2, 2016
3 replies
2312 views

Hello,

I have been using creo 2.0 for a while at work. Unfortunately, I have used other programm in the past such as CatiaV5, SolidWorks, Autodesk Inventor,.....

All of them allow the user to make a specific plan or axis visible in a PART or ASM. However, it is apparently not possible to do such a thing on CREO 2.0. It is for me such a basic thing that I just don't want to accept that it hasn't been done.

Does anyone know about this and could help me, please?

Best regards,

Julien

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

T

TomD.inPDX

17-Peridot

There are good reasons why I do not use any of the templates provided by PTC. They have intelligent layers that take over a lot of basic functions including treating the datum planes and axes as general features. I start my parts and assemblies with empty parts. This removes any template layer rules. Now visibility is in my control, and those few things where I require layers, I can manage myself. This is done using hide and unhide and is easily seen in the model tree. The only rub is that you must save the visibility settings in layers. If you have more than 1 message line visible, Creo will warn you that the layer status was not saved.

M

MartinHanak

24-Ruby III

Hi,

I think you need to use layers to achieve requested result. Please attach some pictures of your model and describe what exactly you want to do. You can also upload your model using How to Attach a File to a Discussion Reply procedure.

MH

D

dgschaefer

21-Topaz II

Create a layer and place all your axis features on it. Do the same for planes. Make sure you are placing the feature on the layer, not the axis or plane entities. There is a difference.

Create another layer and place the single axis feature or plane feature that you want to see in it.

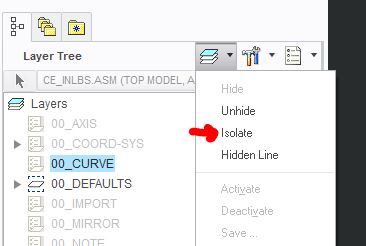

Hide the first layer and isolate the second. Isolate is not in the right click menu, you'll find it in the layer drop down menu.
