Question

MBD and common zone

  • April 22, 2025
  • 1 reply
  • 476 views

Hi,

We have a particular case.
We have 2 hole pattern on different diameters with the same Common Zone.
- 1st pattern is 6xM6 on Ø210

- 2nd pattern is 6xØ9 on Ø224

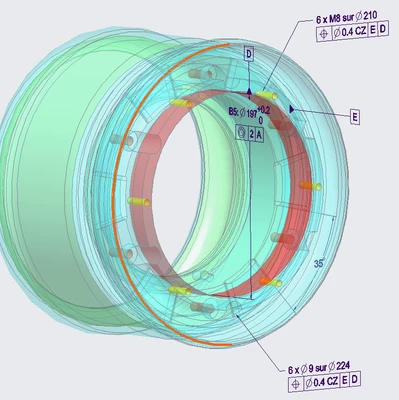

Currently, the dimensions are defined as follows:

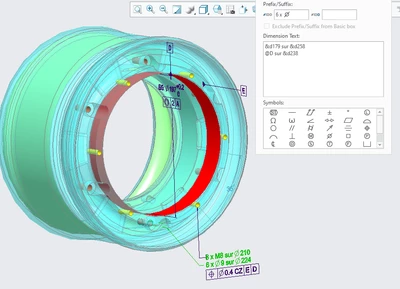

We have manually defined the dims as follow:


For the second arrow, we add a leader note at the height of the 6xM8 on Ø210 text note



Could we make it more properly without "manual tinkering" in MBD?

Regards
