Meaning of Cable Symbol Break

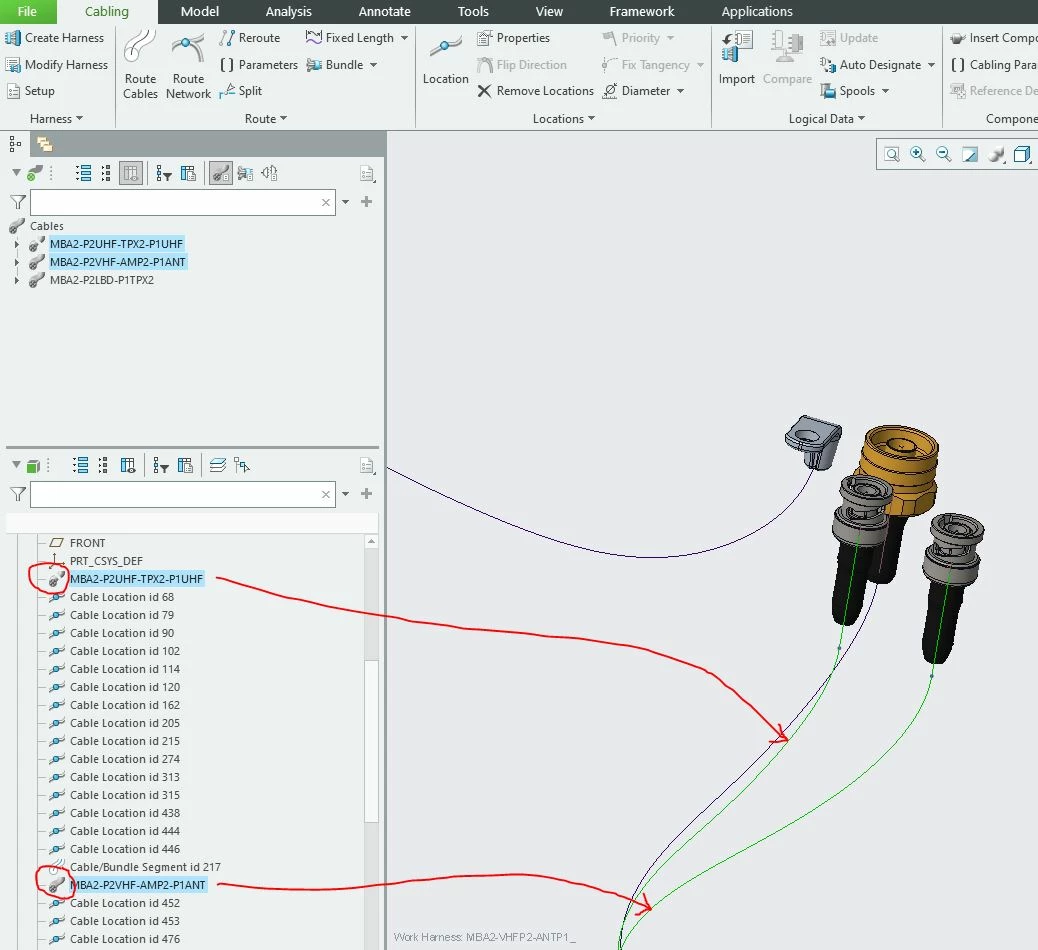

Anyone deep dived into why symbol show broken?. For me everything looks and works good otherwise. I am definitely missing something. Hope it's not of great importance : ) C PIC.



THANKS IN ADVANCE all Pundits! (Gurus)

2 replies

Gaby_K12-Amethyst
12-Amethyst
Apr 9, 2025 2:19 PM UTC

it means the wire/cable is not fully routed (i.e. disjoint segments) .
Check that all cables core are routed and connected correctly.

Translate
Yogesh.T
Yogesh.T14-AlexandriteAuthor
14-Alexandrite
Apr 9, 2025 2:38 PM UTC

Hi,

Like I said, all looks good otherwise. Do you have a check list I can go with? Appreciate. Thx
