Solved

Measure Area - Perimeter curve

  • July 21, 2023
  • 2 replies
  • 2065 views

Hi,

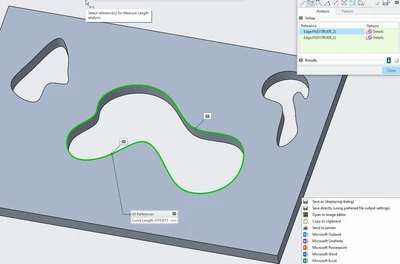

Coming from Solidworks to CREO I am hoping the following is possible, I cannot seem to find in the measure tool a means to measure perimter area. Screen shot example of what I'm trying to calculate:






It is not possible to select area on perimteter, is this possible in CREO?



Best answer by tbraxton
In some cases, you can measure the area within a closed curve in sketch mode as shown here. Use the measure tool inside the sketch.



If you need to so this external to the sketch, then as @MartinHanak has suggested you can create a planar surface using the fill function (inside your curve) and measure the area of the fill surface.


2 replies

M
MartinHanak24-Ruby III
24-Ruby III
July 21, 2023

Hi,

I think you cannot measure an area of empty space. If it is planar curve then you have to create Fill surface and measure its area.

    I
    IE_18-GravelAuthor
    8-Gravel
    July 21, 2023

    Hi Martin,



    Thanks for the reply, I was hopeful this could be done via the measurement tool. Good to know I could use the Fill option.

    tbraxton
    22-Sapphire II
    tbraxton22-Sapphire IIAnswer
    22-Sapphire II
    July 21, 2023

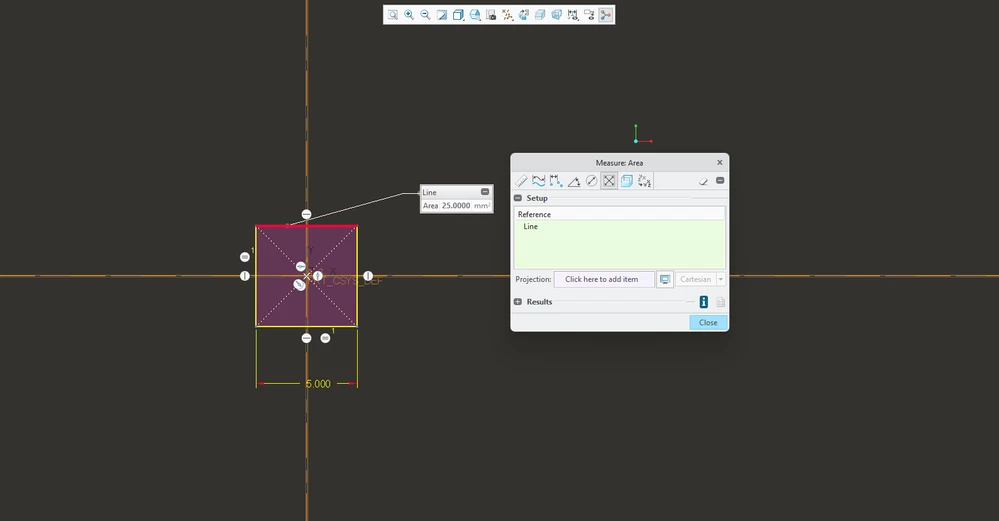

    In some cases, you can measure the area within a closed curve in sketch mode as shown here. Use the measure tool inside the sketch.



    If you need to so this external to the sketch, then as @MartinHanak has suggested you can create a planar surface using the fill function (inside your curve) and measure the area of the fill surface.

      I
      IE_18-GravelAuthor
      8-Gravel
      July 21, 2023

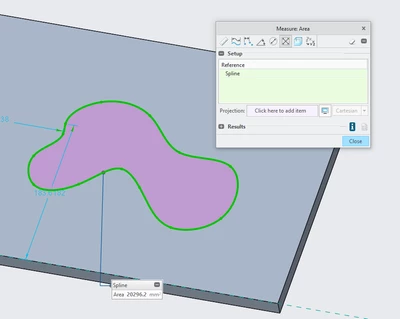

      Thanks, although it would be nice to have this in the model enviroment, it's not a problem to access via the sketch:
