Measure Tool

Unless I'm mistaken, I thought you could measure the circumference of a diametrical feature with the Measure Tool?

MartinHanakAnswer
24-Ruby III
August 2, 2023

Hi,

you need circular edge to be able to measure circumference (perimeter). Therefore you have to add something into your model temporarily - eq. X-section, sketched curve, ...



View in thread

6 replies

tbraxton
tbraxton22-Sapphire II
22-Sapphire II
August 1, 2023

The nature of your "diametrical feature" matters in this context.



Use the perimeter measure. There is a caveat (below) when using this for a cylindrical face. If the ends of the cylinder are not identical then this is not useful as you are not able to simply divide the result by 2 to get the desired measure.



If you attempt to measure the perimeter of a cylinder face, the resultant measurement will be the sum of the perimeters of both circular cylinder ends.



The most robust way to measure this would be with a datum analysis feature.

Translate
IbrahimTayyab14-Alexandrite
14-Alexandrite
August 2, 2023

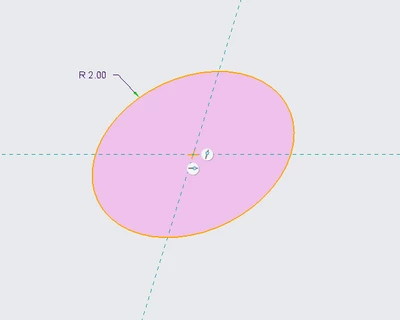

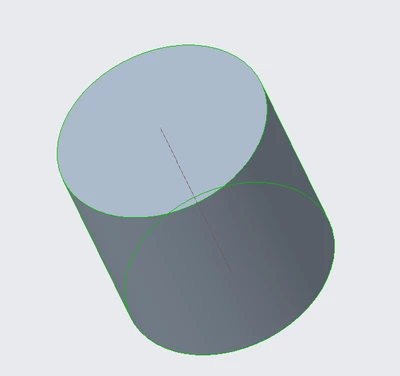

You can. For example I create a sketch of a circle with radius 2 and then extrude it.

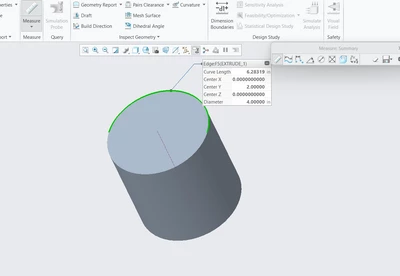

I go to the measure tool and then select the edge of the circular face of the cylinder, this gives me half the circumference.

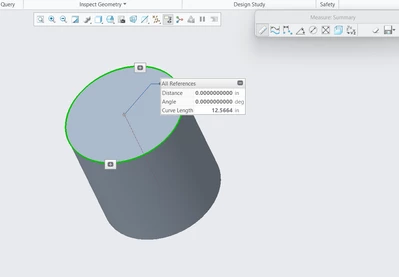

I hold ctrl and select the other non-selected half edge, this gives me the full circumference.

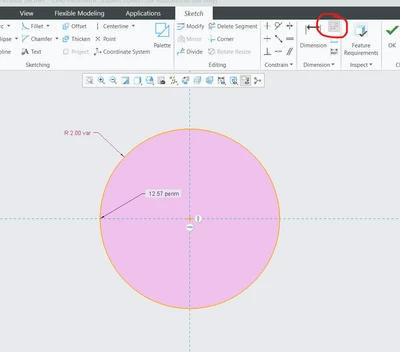

A method that I recently found which might be helpful is defining the perimeter in the sketch itself. I select the perimeter tool, select the circle, click ok in the pop up menu and then select the radius/diameter.












Translate
    IbrahimTayyab14-Alexandrite
    14-Alexandrite
    August 2, 2023

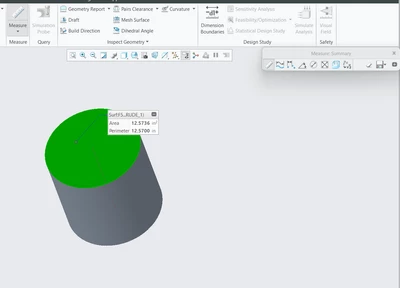

    You can also click the face of the cylinder using the measure tool and it will give you the perimeter/circumference. (You may see that the perimeter measurements are a bit different in my previous reply and this one, I had modified the sketch resulting in this difference.)




    Translate
      CR_988805612-AmethystAuthor
      12-Amethyst
      August 8, 2023

      Thanks, I'll have to remember that one. 🙂

      Translate
      MartinHanak24-Ruby IIIAnswer
      24-Ruby III
      August 2, 2023

      Hi,

      you need circular edge to be able to measure circumference (perimeter). Therefore you have to add something into your model temporarily - eq. X-section, sketched curve, ...



      Translate
        CR_988805612-AmethystAuthor
        12-Amethyst
        August 8, 2023

        Thank you, yea that makes sense. Seems when you select the edge itself, it will only select half of the circular edge feature. Never understood why it's like that.

        Translate
