Measure volume of formula-driven lattice

  • May 26, 2022
  • 10 replies
  • 4274 views

Hello,

how can I measure the volume of  formula-driven lattice?







10 replies

tbraxton
tbraxton22-Sapphire II
22-Sapphire II
May 26, 2022

Assuming that you replaced a body with the lattice, then you can measure the volume of the body directly. Use the measure volume function and select the body.

https://support.ptc.com/help/creo/creo_pma/usascii/index.html#page/fundamentals/fundamentals/fund_five_sub/to_measure_volume.html

    E
    EngGR1-VisitorAuthor
    1-Visitor
    May 26, 2022

    Thank you.

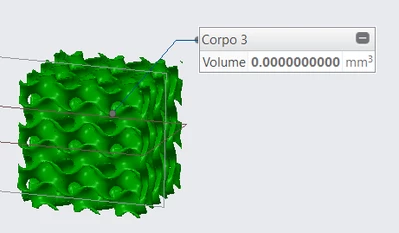

    Only in the case of formula-driven lattice the measured value is 0.
    How can I solve it?




    tbraxton
    tbraxton22-Sapphire II
    22-Sapphire II
    May 26, 2022

    Is the example you are testing solid geometry? I can not tell from the image. I do not have the Creo extension to create the lattice so I cannot test this. Can you post the model so it can be queried?
