Mechanism Gear&Rack
- August 22, 2014
- 1 reply
- 1095 views
New to Mechanism

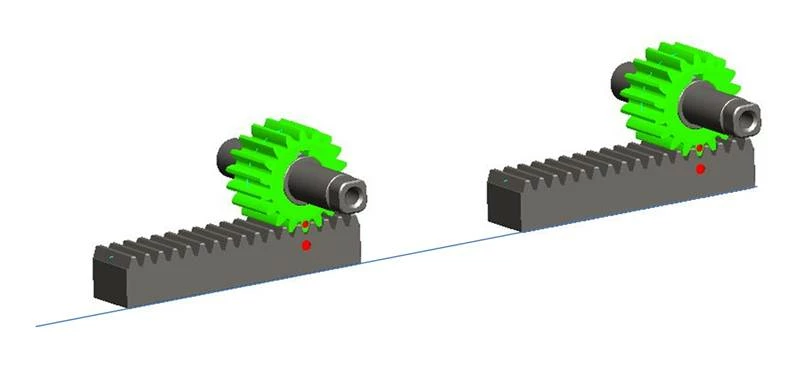

I have a gear and rack assembly (only basic components shown for clarity)
This single assembly simulates correctly in Mechanism when dragging the rack.
What I need to do is assemble multiple units into a main assembly and drive those units with one link bar (shown as blue line)
I can’t seem to get the connection correct, any tips?
And what are the rules with patterns and connections, do’s don’ts tips & tricks?
Thanks all
JSCOTT
Jeff Lippeth ▪ Mold Design Engineer
NyproMold, Inc.
955 Tri-State Parkway, Gurnee IL 60031
144 Pleasant St, Clinton MA 01510 ▪ www.nypromold.com
