Milling Sequences - Drawing Sheet

  • September 23, 2014
  • 5 replies
  • 1904 views

How to convert sequences as a drawing ?

Is there any possible way to take printout each sequences as a drawing ?

If any document I need to refer means kindly mention it.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

ddevienne1-Visitor
1-Visitor
October 24, 2014

Hello,

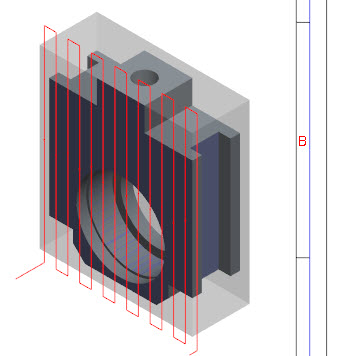

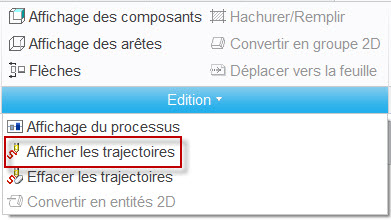

In drawing, you can display trajectory for each sequences :



David.

Manikandan1-VisitorAuthor
1-Visitor
October 27, 2014

Hi

Thank you for your reply

My show path is invisible in my machine. I have complete machining extension license.

Kindly tell me what i need do to next ?

gkoch2-Explorer
2-Explorer
October 27, 2014

Or do you want to document the sequence settings?

In that case you can use a report table and enter the desired sequence parameters as User Defined.

Manikandan1-VisitorAuthor
1-Visitor
October 27, 2014

Thank you for sharing your knowledge with us !!

I want each and every sequence as a separate drawing .

ddevienne1-Visitor
1-Visitor
October 28, 2014

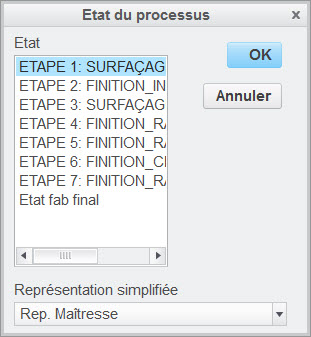

you can select your first sheet, copy


and select an other sequence


repeat for the other step.
