Missing lines issue in drawing

  • November 24, 2016
  • 2 replies
  • 5282 views

Hi,

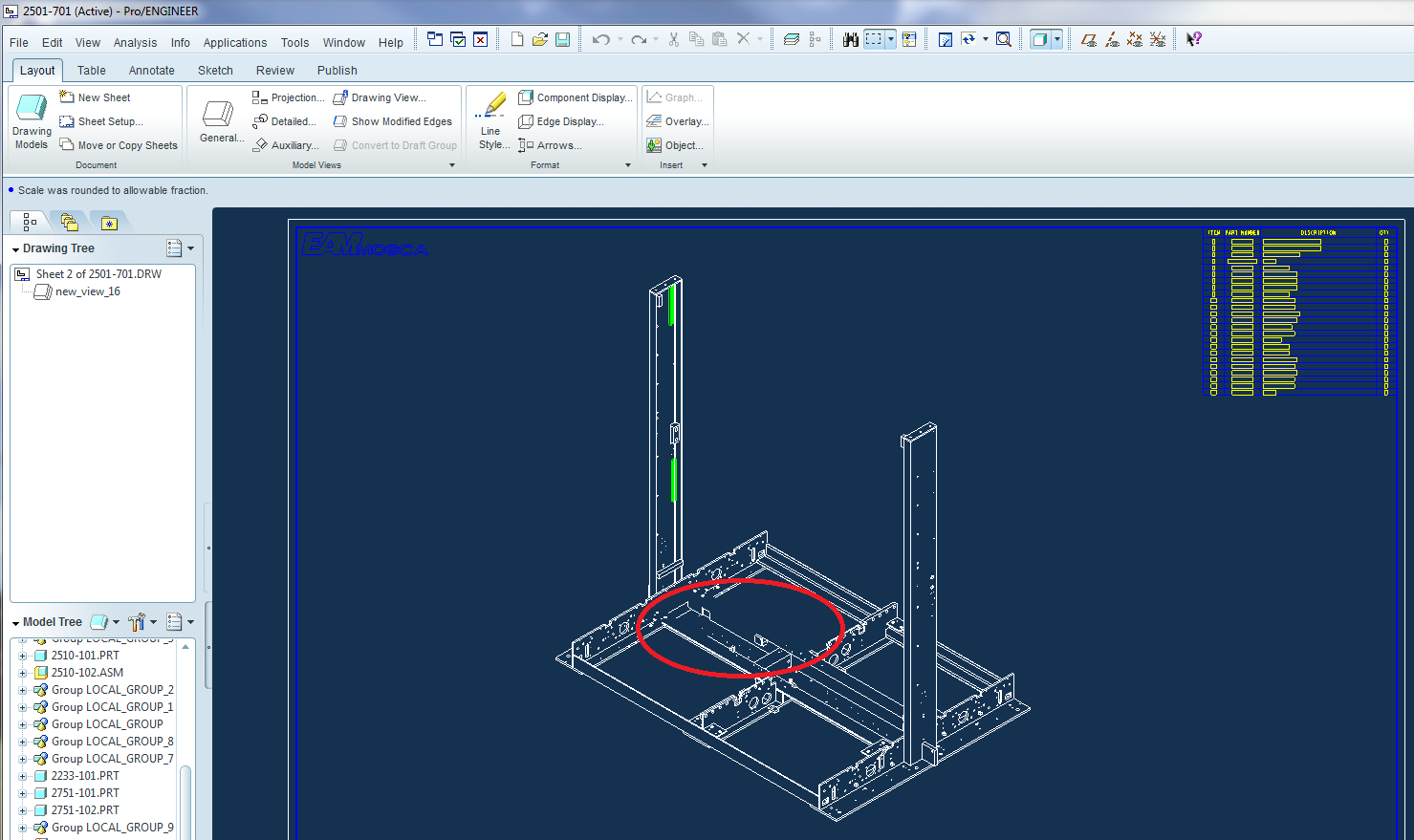

Below is a drawing on "Follow Environment" display style:

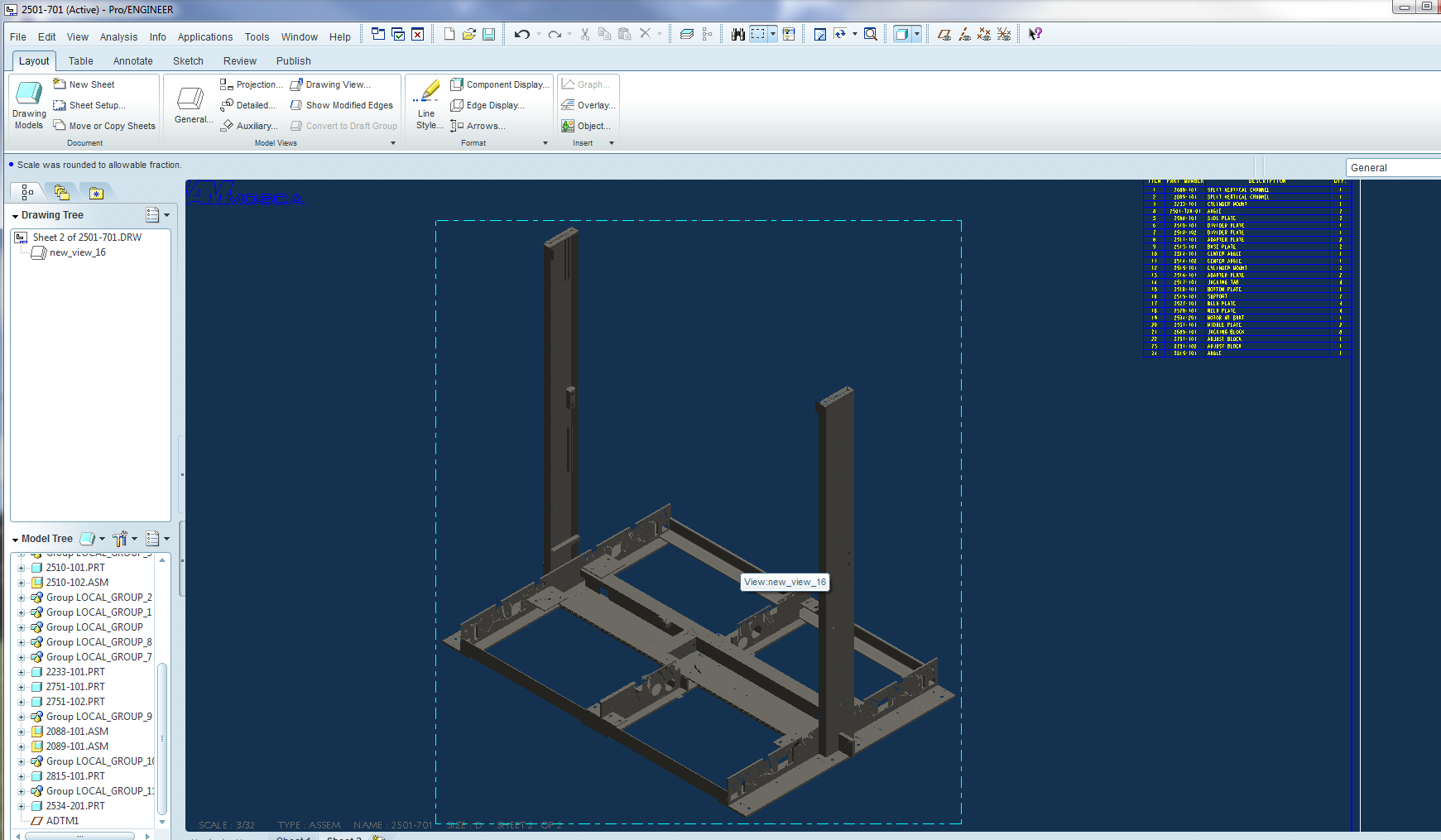

If display style changed to "No Hidden", some lines were disappeared as below"


This issue happened before.

Appreciate if you can help me to fix this problem

Regards,

Bill Xu

2 replies

M
MartinHanak24-Ruby III
24-Ruby III
November 24, 2016

Hi,

check your assembly for global inteferences. This can be source of your problem.

MH

    B
    bxu1-VisitorAuthor
    1-Visitor
    November 24, 2016

    Martin,

    You are right.

    After I check "Global Inteferences", the lines appear.

    Thanks,

    Bill

    B
    bxu1-VisitorAuthor
    1-Visitor
    November 25, 2016

    Martin,

    It's like the issue was fixed yesterday after I check Global Intefereances. But it still there again when I open the drawing today, and I did try to check Global Inteferances, no lucky to fix this issue.

    I don't know why ?

    Thanks,

    Bill

    M
    MartinHanak24-Ruby III
    24-Ruby III
    November 25, 2016

    Hi,

    if interferences are detected in the assembly then 3D view can be displayed incorrectly. You have to remove interferences, if you want to display correct 3D view on the drawing.

    Note: The root of your problem can be something else. Without your data, it is difficult to give you the right answer.

    MH
