Question

Model annotations - issue telling a 6 from a 9

  • March 27, 2020
  • 1 reply
  • 3183 views

Has anyone else ran into the problem of telling a 6 from a 9 in an annotated model?   See the image below.  If so what are you doing about it?



This has come up a few times with basic dimensions (our rule is any annotation dimension should have a tolerance unless it's basic so when you have a tolerance that helps correctly orient the text).  This is only a human readability issue but with MBD there are still plenty of times a human needs to view the annotated model.  Obviously measuring the model will answer the question.

1 reply

A
AmitDeshpande18-Opal
18-Opal
March 27, 2020

You forgot to add the image :).

Z
zmiller14-AlexandriteAuthor
14-Alexandrite
March 27, 2020

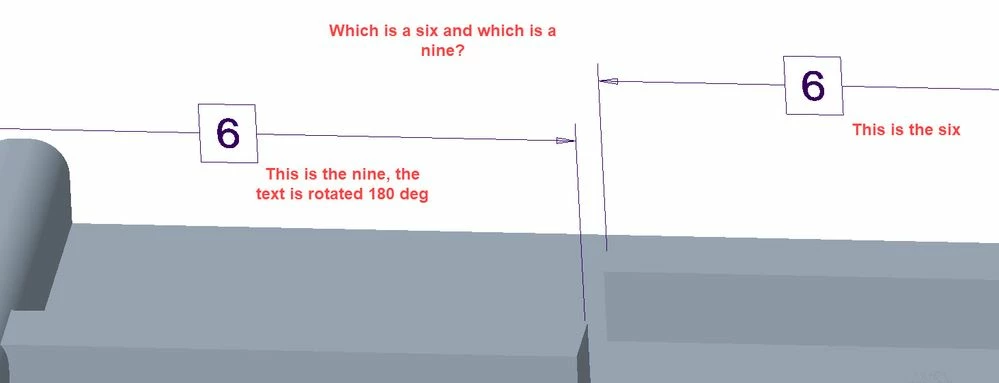

Here is the image, it seemed like it was attached to the orginal post before I hit "post" but obviously something happened.

K
KenFarley21-Topaz II
21-Topaz II
March 27, 2020

It's kind of a lame workaround, but you could always click on the dimension, go into Dimension Text, and make the prefix and suffix underline (_) characters. This would at least give a distinct indication of the number's orientation.
