Model dimension offset

Is it possible to lock a dimension with an offset to a face of the model?

Now, when I change the length of a profile, the dimensions are not staying outside the model.

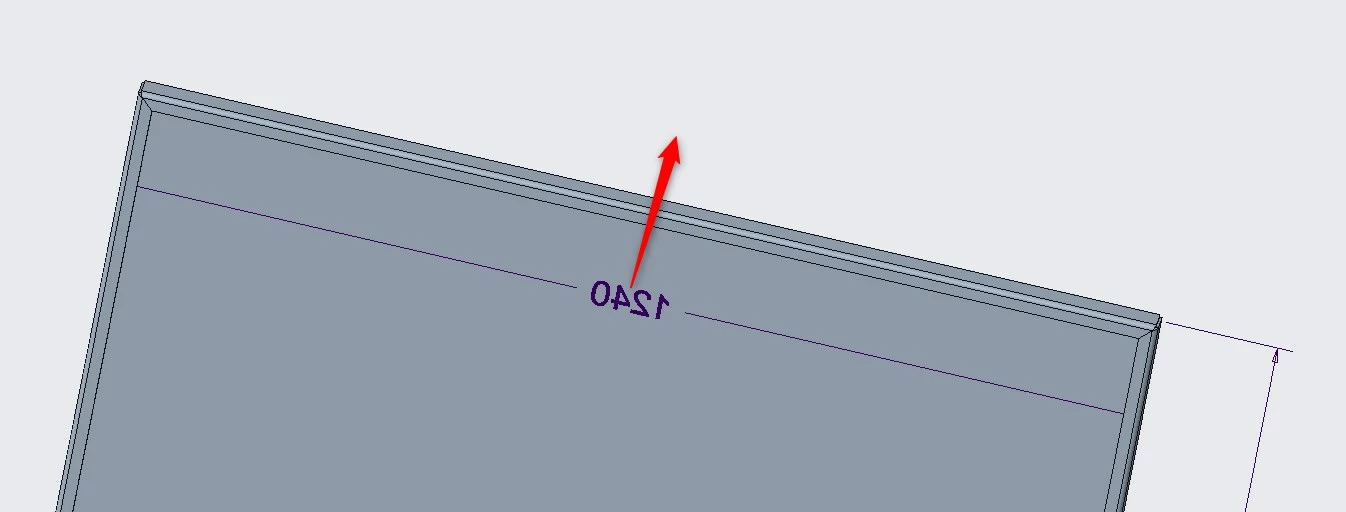

See picture.

KenFarley
KenFarleyAnswer
21-Topaz II
September 3, 2019

To the best of my knowledge, no, there is no way to keep dimensions conveniently located. And the behavior of linear dimensions is minor compared to what angular dimensions do.

View in thread

2 replies

KenFarley
KenFarley21-Topaz IIAnswer
21-Topaz II
September 3, 2019

To the best of my knowledge, no, there is no way to keep dimensions conveniently located. And the behavior of linear dimensions is minor compared to what angular dimensions do.

Translate
Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
September 3, 2019

@BWS

I would echo with Ken, not any option to lock.
