Model Properties analysis:Automatically generate the X, Y, Z axis maximum model size parameters

  • April 29, 2012
  • 2 replies
  • 1239 views

Parameter: SIZE_X,SIZE_Y,SIZE_Z

Used for the preparation of the material.

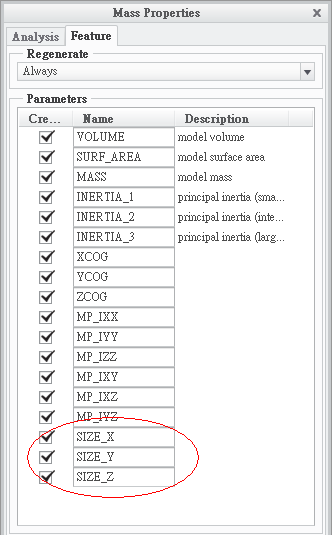

Model Properties.PNG


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

    2 replies

    tmeneguzzo3-Newcomer
    3-Newcomer
    July 11, 2012

    I would like this option too!

    Should also be possible select a alternative coordinated system to generate the values according X, Y and Z, for those cases of complex parts oriented in a different direction of standard coordinated system. Only solid geometry should be considered because in some cases there are surfaces bigger than the resulting solid geometry.

    udyna2-Explorer
    2-Explorer
    August 29, 2014

    In ModelCHECK the overall_size info includes surface and solid both.

    The workaround is use Model Outline/size functionality in EMX (Expert Moldbase Extension)
