Models Colliding

Hi guys. Is there a way to see if two models you have in a assembly are colliding? I have ergonomic grip handle that is housing PCB electronics. I want to push the electronics as far into the cavity without them touch or hitting the enclosure. I know I can turn hidden lines on, but the shape and "busyness" of the assembly make it hard to tell. Any insight would be greatly appreciated. Thanks.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
RaphMORINAnswer
16-Pearl
Mar 20, 2015 4:47 PM UTC

Yep, I often use it. It's right here !

3 replies

Patriot_1776
22-Sapphire II
Mar 20, 2015 1:56 PM UTC

Well, there is a collision detection in Mechanism, if you have access to it. I believe there is also a way without it to check at the assembly level, under analysis. I'm not in Pro/E at the moment, but I think it's still there.

Translate
21-Topaz II
Mar 20, 2015 2:54 PM UTC

Are you talking about moving parts or simply interference detection? There are built in interference checks on the analysis tab.

Translate
RaphMORIN16-PearlAnswer
16-Pearl
Mar 20, 2015 4:47 PM UTC

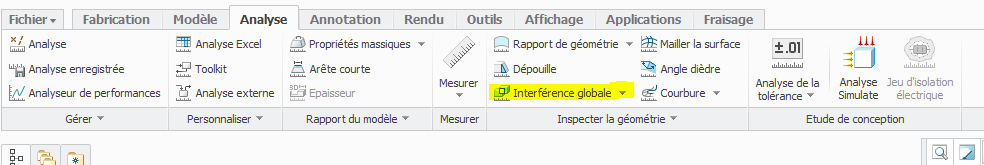

Yep, I often use it. It's right here !

Translate
