multi bend

  • September 7, 2017
  • 7 replies
  • 4881 views

hello all . i hadd plate ,i want to make 3 bends in differient positions.ihad made two but the last can not exexute till i delete the other bend >please help .see attached files

Best answer by psobejko

This sequence worked for me:

 11



22



3 - bend using "up to end of surface" option3 - bend using "up to end of surface" option



4 - add an extrusion to form a flat section that...4 - add an extrusion to form a flat section that...

 ... can be bent (again using the "to end of surface" option)... can be bent (again using the "to end of surface" option)It's definitely not intuitive...



7 replies

D
dabuhassabu1-VisitorAuthor
1-Visitor
September 8, 2017

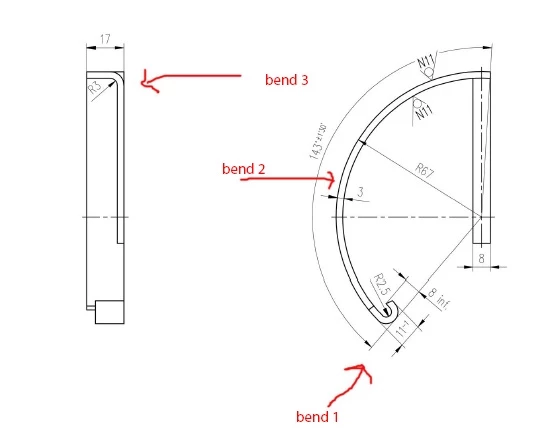

thanks for your help.check the picturebend2.jpg







D
dschenken1-Visitor
1-Visitor
September 8, 2017

.

D
dabuhassabu1-VisitorAuthor
1-Visitor
September 8, 2017

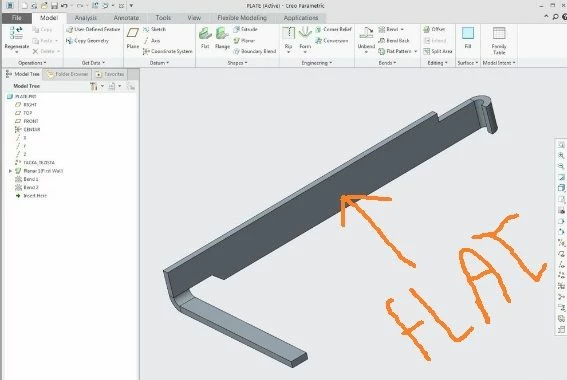

thanks friend.but after applying bend 1  and bend 3  the position of bend 2 is flat.look at pic belowbend 2-1.jpg
