Hi



I want to pull a piece that has a draft angle, but instead of having a linear draft, I want the draft to gradually increase in angle so it turns into a curved draft (i.e. so starts at a shallow angle but increases angle as it is pulled further). Is this possible?



The other way to do this sounds like if I pull the part without any draft, and then carve out the side faces with the curved tool; difficult to explain what I mean, but think of it as if you have a piece of wood and you profile all the sides of the wood using an electric router with a curved router bit. Make sense?



And is this possible?



Thanks..

1 reply

17-Peridot
January 23, 2017

Hello,

a exemple picture should be helpful.

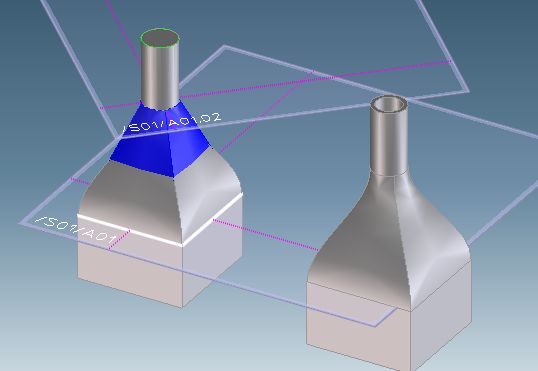

Do you know the loft funktion ?

Have lock at the help.
