Question

Not able to export 3D sectional view from Creo MBD to pvz

We are using MBD extensively and Creo is helping us out on that.

I found 1 issue with sectional view.

I have generated 3D sectional view and added in Combined state. It looks perfect in Creo.

But when i export to PVZ , sectional view is not showing properly. It is still showing complete part not clipped view.

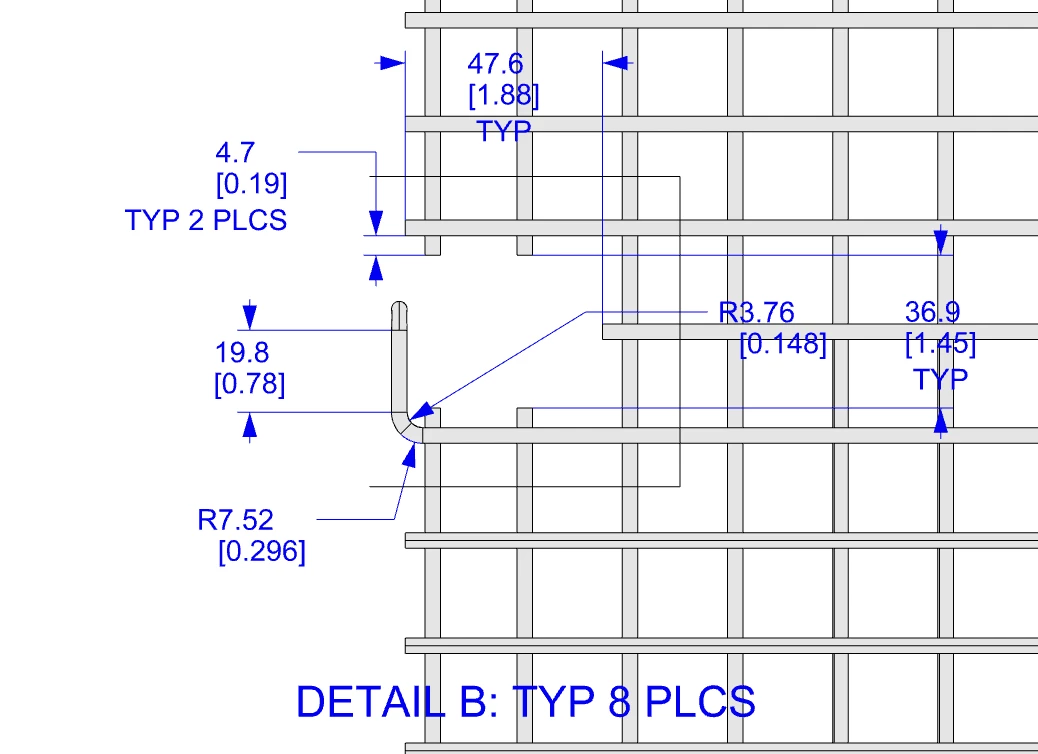

Creo Parametric -

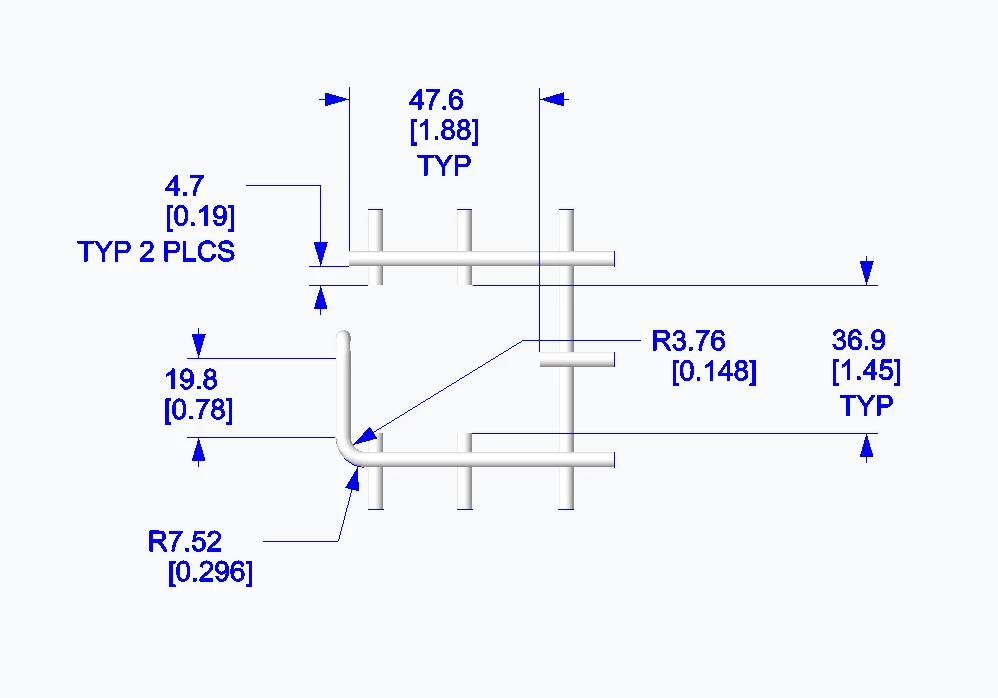

Exported PVZ -



3 replies

VladimirN24-Ruby IV
24-Ruby IV
Jul 28, 2026 10:04 AM UTC

You did not specify which versions of the programs you are using.

Translate
Vinayak_Patil11-GarnetAuthor
11-Garnet
Jul 28, 2026 10:07 AM UTC

We are using Creo 10.0.4 and generating PVZ files with Creo View adapter. We have generated our own Recipe file. I found that Planer sectional views gets published to PVZ. But if Offset Sections are not published as it is in PVZ.

Translate
VladimirN24-Ruby IV
24-Ruby IV
Jul 28, 2026 10:20 AM UTC

Also take a look - "How to export the "Combined Views" aka "Combined States" to Creo View PVZ format "Viewables" tab with Creo Parametric": https://www.ptc.com/en/support/article/CS286532
