Not able to get parting lines for step files. Some lines are missing.

Hi everyone.

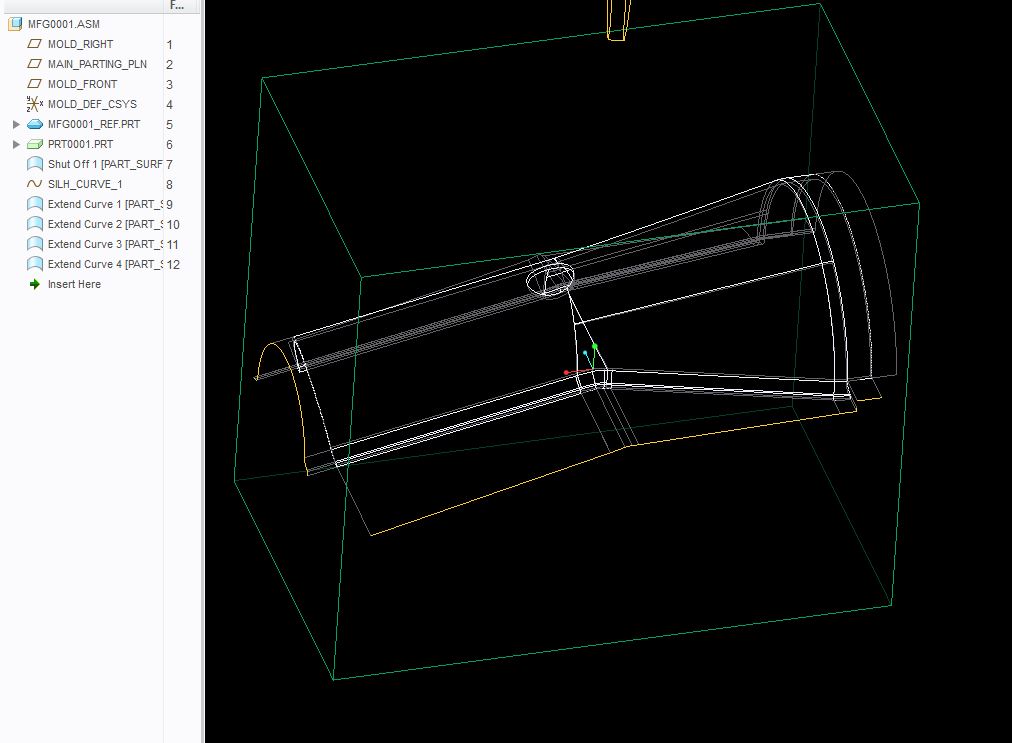

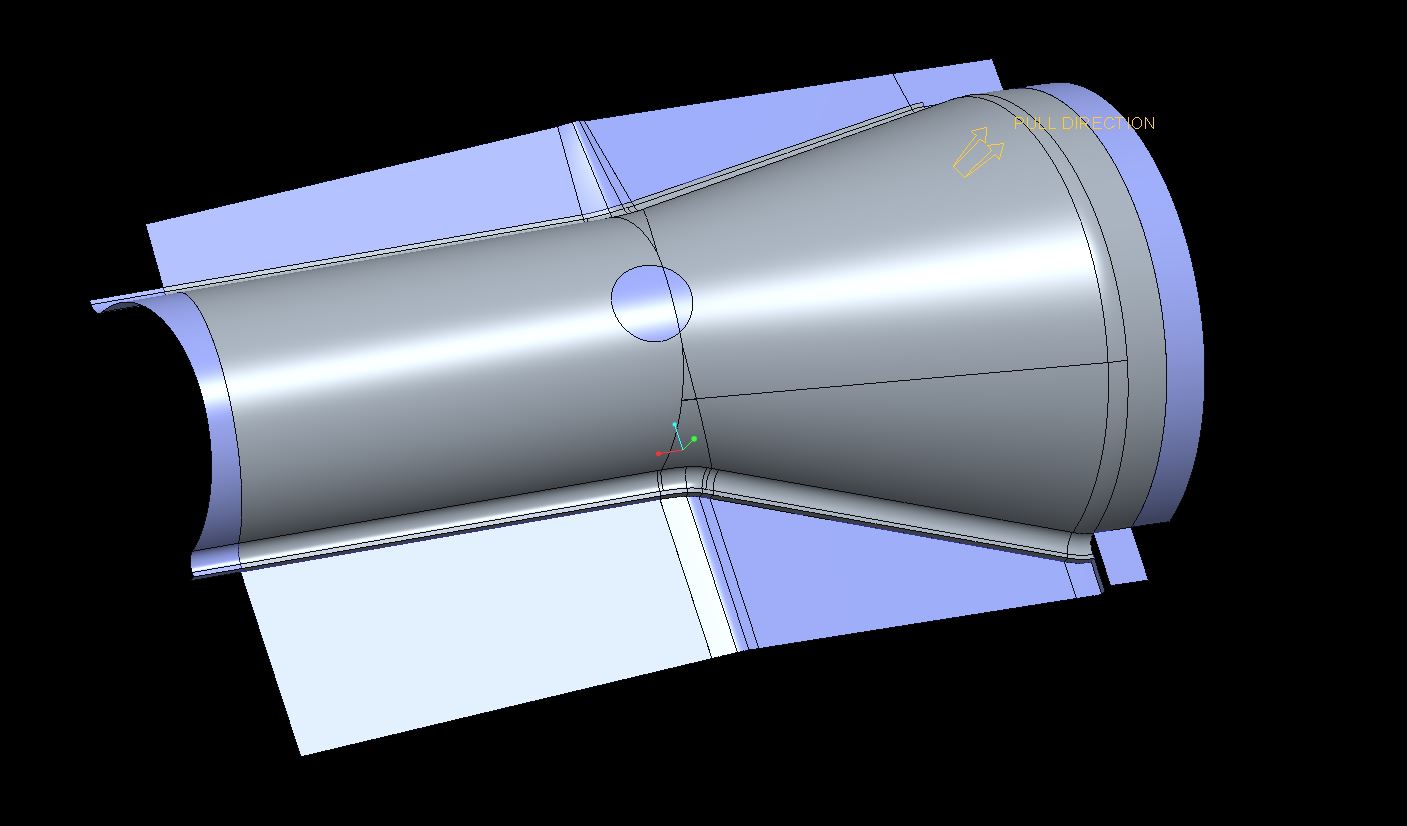

I recently bought creo Tool design extension. I am not able to get parting lines properly on step files.

I tried solidifying these files as well but could not work.

Please find the attached files for your reference.

Kindly do the needful.

14-Alexandrite

I messed with the simpler one a little, I think you do want to tweak the part a bit to get it better.

Author

1-Visitor

Hi Matt Gris world,

Could you please guide me to get those curves.

The components which I have got are all of similar kinds.

Request you to please send an screen shot procedure for the same.

Thanks and Regards,

Sanket

14-Alexandrite

The part still needs some work. this alone is not going to do it.
