Number of Holes as a Parameter in Part

Can someone tell me what Relation should i use to create a Parameter that captures number of Holes in a Part.



If I use Hole command in a Part to make Holes [Not Extruded Cuts] and did patterns for few of them, I want Creo to capture Number of Holes including pattern members into a Parameter called NUMBER_OF_HOLES



@MartinHanak @tbraxton @KenFarley @TomU





    TomU
    TomUAnswer
    23-Emerald IV
    Jan 20, 2023 10:07 PM UTC

    No parameter currently exists with this value.  You would need to either count them using the Find tool or build some automation to count them for you.  (J-Link, VB, Toolkit, SmartAssembly, etc.)

    View in thread

    5 replies

    TomU
    TomU23-Emerald IVAnswer
    23-Emerald IV
    Jan 20, 2023 10:07 PM UTC

    No parameter currently exists with this value.  You would need to either count them using the Find tool or build some automation to count them for you.  (J-Link, VB, Toolkit, SmartAssembly, etc.)

    Translate
      MartinHanak24-Ruby III
      24-Ruby III
      Jan 21, 2023 8:48 AM UTC

      Hi,

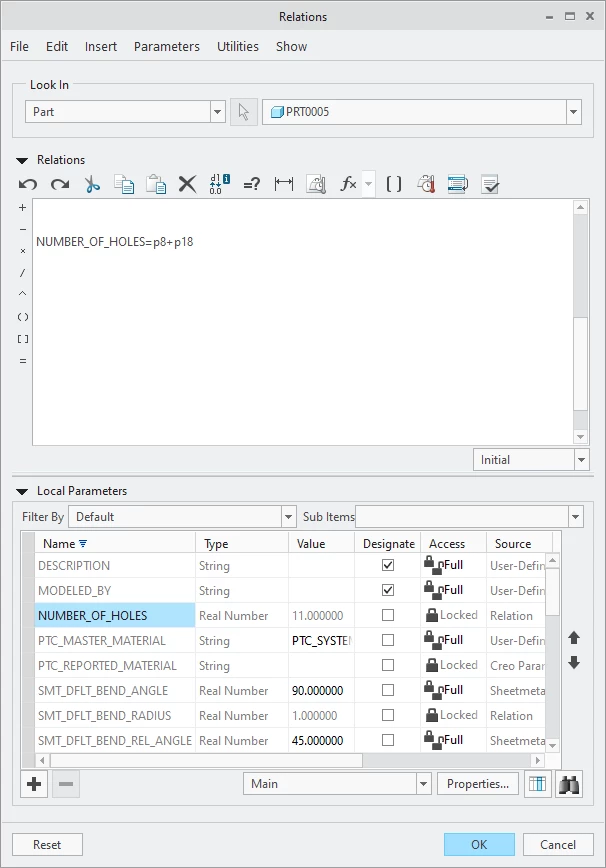

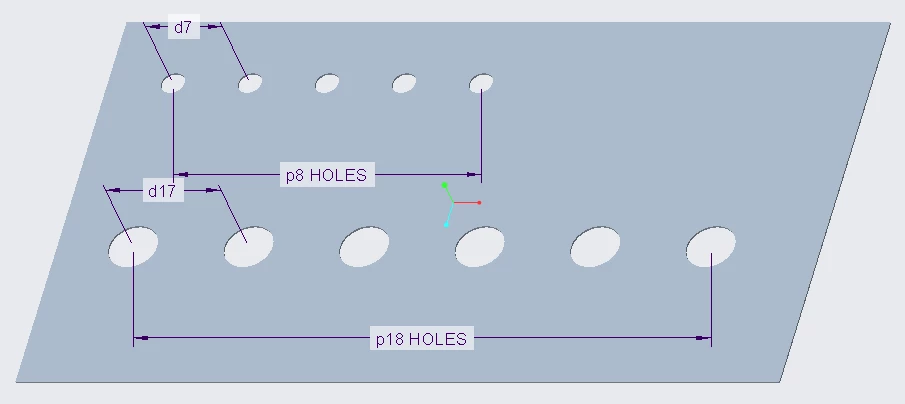

      every pattern contains "dimension" representing number of instances.


      Therefore you can create relation which counts hole quantity,






      Translate
        NiruSatya10-MarbleAuthor
        10-Marble
        Jan 23, 2023 6:07 PM UTC

        For this I'll have to Manually feed this info into Relations and that's the current practice I'm following.

        But I'm looking for a way of Automatic Hole Feature Recognition into Parameters / Relations.

        Translate
        tbraxton
        tbraxton22-Sapphire II
        22-Sapphire II
        Jan 23, 2023 6:12 PM UTC

        Without using one of the Toolkit APIs. The best option I can come up with to semi automate this would be to build a search query that will find all of the hole features and select them all with the search tool. There may be a way to extract the total number from that selection set for use in a relation using a mapkey. I have not done this specific task but have been able to use the query tool to create lists in selection that have been useful with mapkeys.
