Question

Overide line style for one component in drawing

  • August 26, 2022
  • 1 reply
  • 1063 views

I am having an issue where I am attempting to make just the items I am calling out dark edges and everything else grey. We are using a skeleton as the base of the assembly to which everything is mated. In order to make that grey I changed the system appearance of manufacturing volume to grey. Where I run into an issue is when a component is an import Creo treats it also as a manufacturing volume and makes it grey as well. Using component display doesnt override the system appearance so I cant make imported components dark lines. Any ideas?

1 reply

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
August 26, 2022

So you are trying to use component colors in the model AND component display in the drawing?



I think you need to avoid using anything other than component display. Set everything that you want "light" to phantom transparent using component display and the ones you want to show as "dark", don't set anything on them. They should be default to the darker object lines.





B
BM_82121281-VisitorAuthor
1-Visitor
August 26, 2022

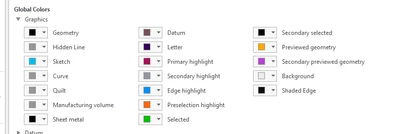

This only overrides the line type and the color does that change. All components that are considered quilts are one color and manufacturing volumes another. If I have an import in my assembly, which Creo considers a manufacturing volume, it makes it the same color as my skeleton which is also considers a manufacturing volume. I want to overide the system appearances (below) for one manufacturing volume but not all of them
