Question

Overlay of drawings for checking

  • December 23, 2025
  • 2 replies
  • 157 views

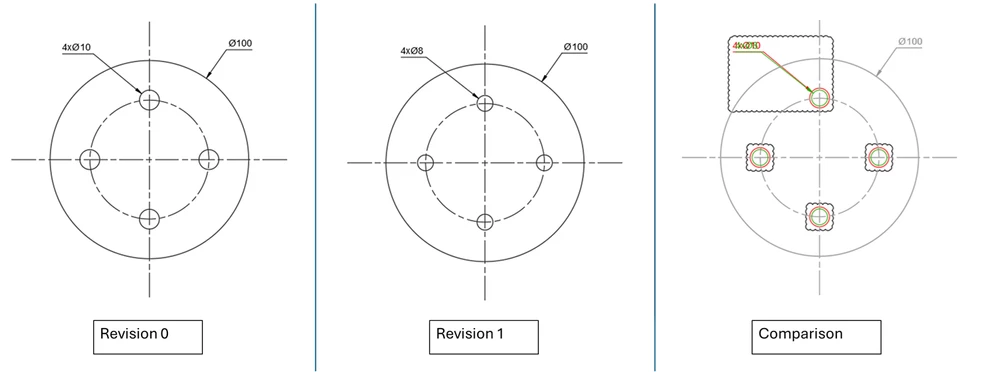

I am using Creo Parametric 11.0.6.0. In AutoCAD, there is a feature called compare with which we could compare the drawings and find out the changes that are made. Sample_Overlay.png



In the above image, the holes are changed from Dia 10 to Dia 8. On using the compare tool, the affected regions highlighted with cloud like marking.



Is there an equivalent feature in Creo that does the same function as above?

2 replies

tbraxton
22-Sapphire II
22-Sapphire II
December 23, 2025

Drawing overlay. Check out this video from @DaveMartin .



https://www.youtube.com/watch?v=HPDmLWk11qs&t=1s

14-Alexandrite
December 24, 2025

One can do the comparison at the Model Level too.

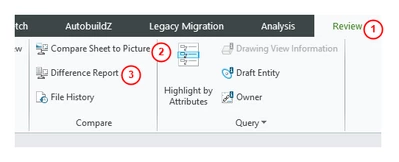

Check out Tools --> Compare Part


At the Drawing level:
