Parameter setting -a drop-down list in the material column with the specified materials

  • July 21, 2024
  • 4 replies
  • 3386 views

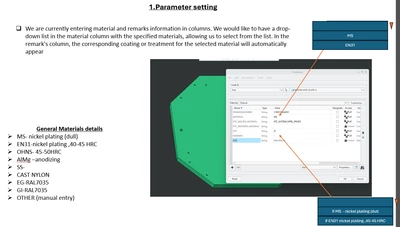

We are currently entering material and remarks information in columns. We would like to have a drop-down list in the material column with the specified materials, allowing us to select from the list. In the remark's column, the corresponding coating or treatment for the selected material will automatically appear

parameter setting.png

Best answer by Radovan_DT




4 replies

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
July 21, 2024

Custom programming using an API would be required to implement this using the GUI.



Without API programming, you could use conditional relations to update the coating/treatment string based on the value of the material parameter assuming there is a unique coating/treatment value mapped to each material selection.

S
ssreevalsan8-GravelAuthor
8-Gravel
July 21, 2024

Thank you very much for your reply. As I am new to this, I would greatly appreciate it if you could provide further explanation on how I can proceed. If it is not too much trouble, could you please share a PowerPoint presentation or a video on this topic?

B
23-Emerald III
BenLoosli23-Emerald III
23-Emerald III
July 22, 2024

I would recommend that you look at the use of material files and their parameters for setting material parameters in the part files. You can extract material descriptions from the material files.

If you just want a drop-down list of items to select from for a parameter, look into using restricted_parameter file for the selection list.

H
Hidetaka1-Visitor
1-Visitor
July 24, 2024

An easy way to do so is to use External File for Restricted Parameters (.lst)

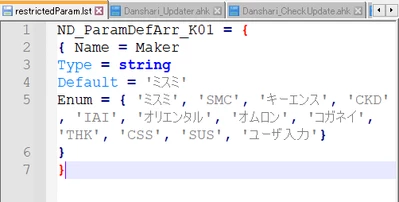

A lst file looks like this. I wrote it for a parameter named Maker, but writing for "Material" would be the same.
Note that if you do so, Material is just a string parameter.



Then you will have this dropdown menu:




To pair values in one column with values in another column, use relation:

For example:

if material == "S45C"
treatment = "Ni-Cr/5"
endif

To add relations automatically, use modelCheck (add missing relations).
To add the relations in the example above to your model, in the appropriate .mcs file, add this

PRT_RELATION if material == "S45C"
PRT_RELATION treatment = "Ni-Cr/5"
PRT_RELATION endif


It is just that simple.



    R
    Radovan_DT14-Alexandrite
    14-Alexandrite
    July 25, 2024

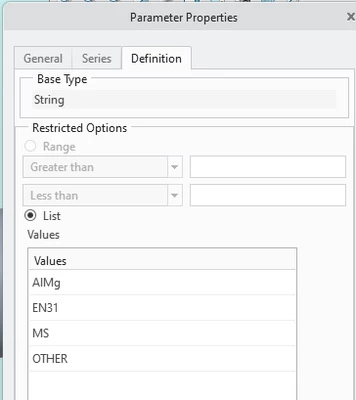

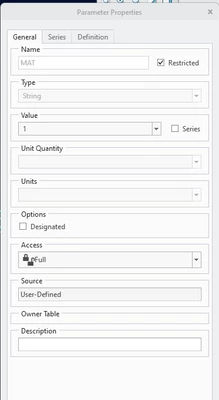

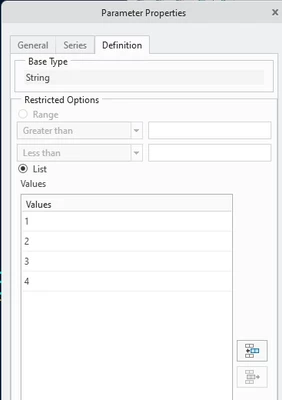

    Create new parameter with dropdown menu in "definition tab" and a simple relations which are automatically getting the correct value.








      S
      ssreevalsan8-GravelAuthor
      8-Gravel
      July 25, 2024

      Thank you for guiding me. I am now able to create the drop-down list for the material. Could you please explain how to establish a relation for the remark column?

      R
      Radovan_DT14-Alexandrite
      14-Alexandrite
      July 25, 2024

      So these are my values

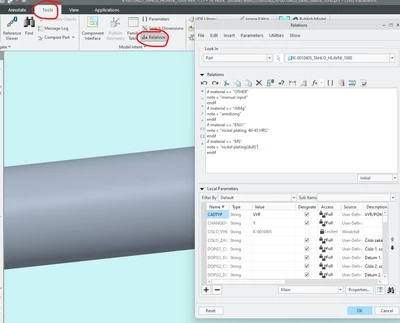

      and this is how relations are made

      if material == "OTHER"
note = "manual input"
endif
if material == "AlMg"
note = "anodizing"
endif
if material == "EN31"
note = "nickel plating, 40-45 HRC"
endif
if material == "MS"
note = "nickel plating(dull)"
endif

      So when i put &note on the drawing it will show desired value
