Question

parting surface and mold volumes required

  • January 2, 2015
  • 1 reply
  • 1472 views

Dear all please help me how could i extract mould volumes in pro-e for given component.

i wanted to know the parting surface, no of sliders and finally which type of mould used which can eject my component with all features.

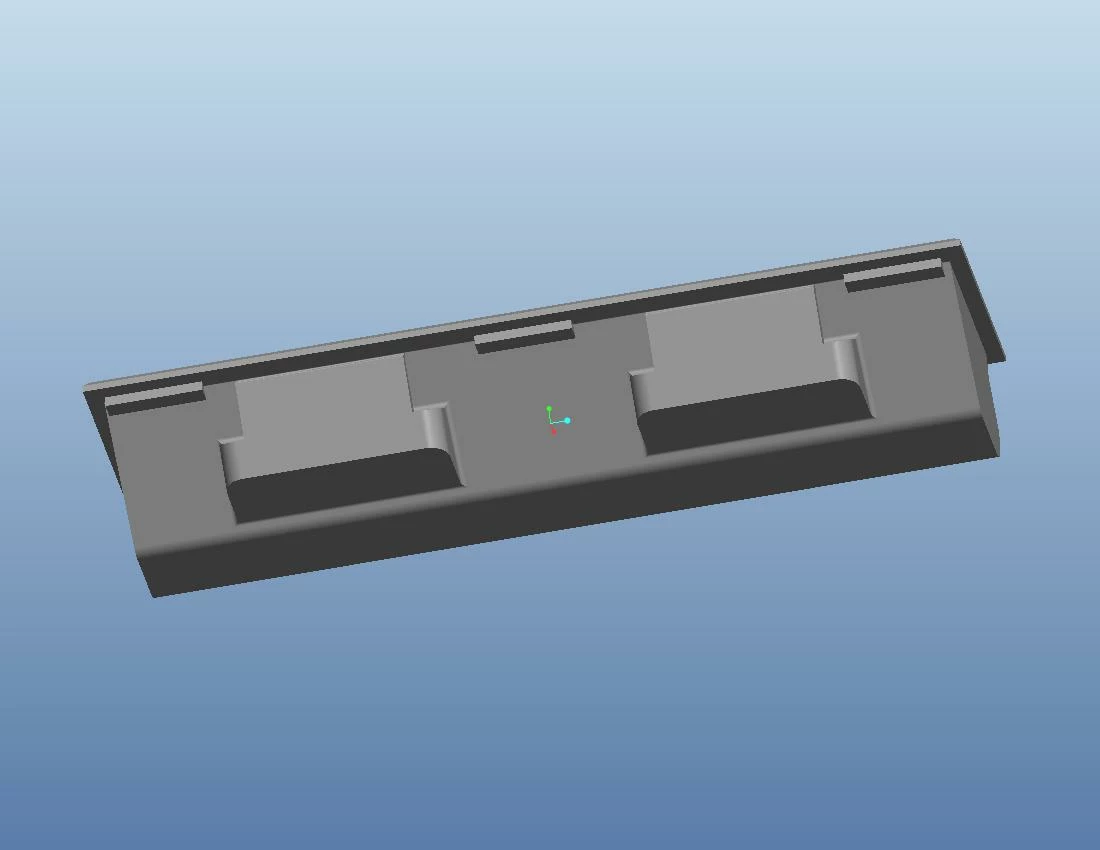

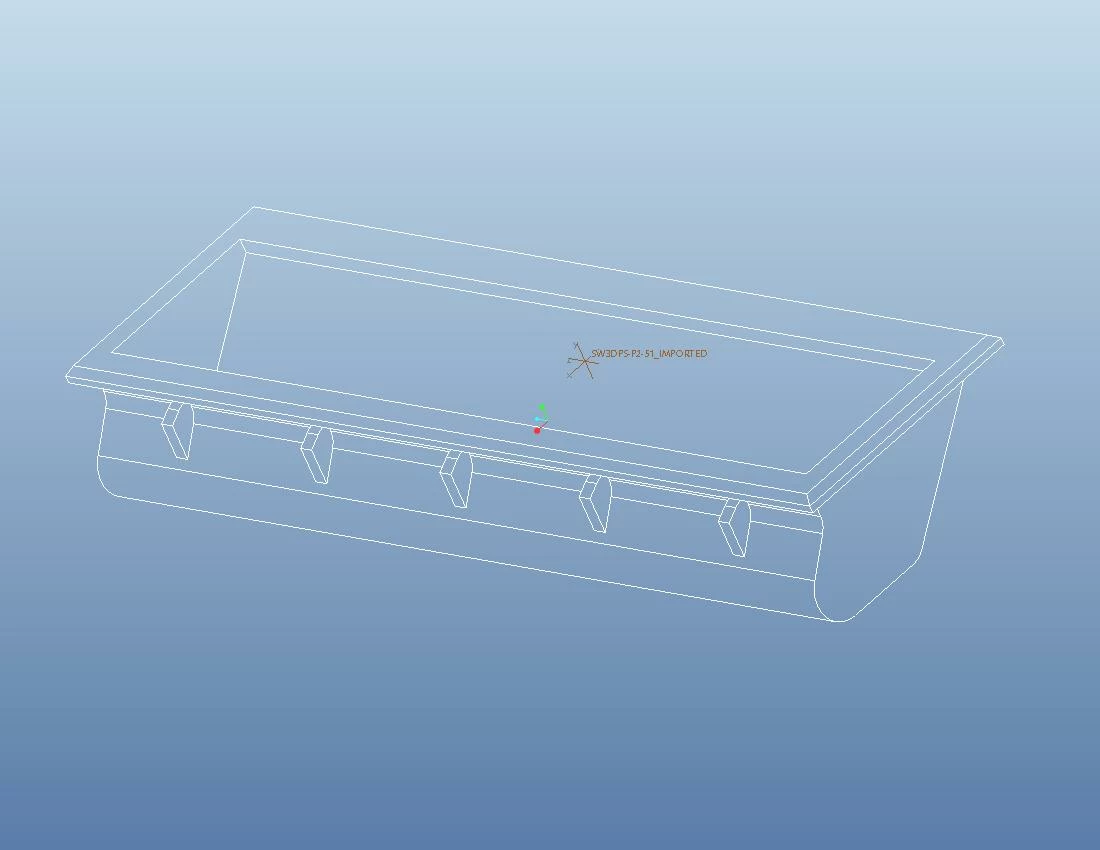

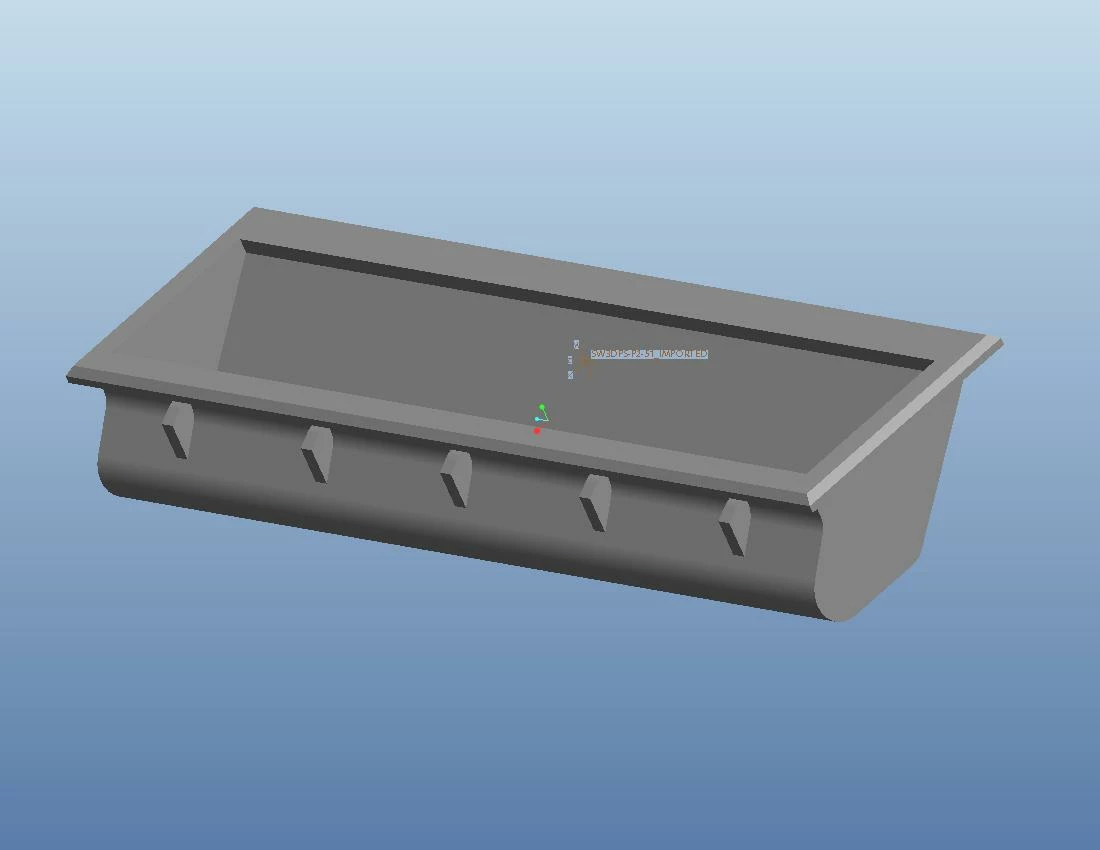

Kindly find component detail in picture attached.

reg

Ranjan

1 reply

17-Peridot
January 2, 2015

This is why mold makers get paid the big bucks

Some of this is logical following general design rules for plastics, but the rest becomes an art.

Do you have the mold extension for Creo?
