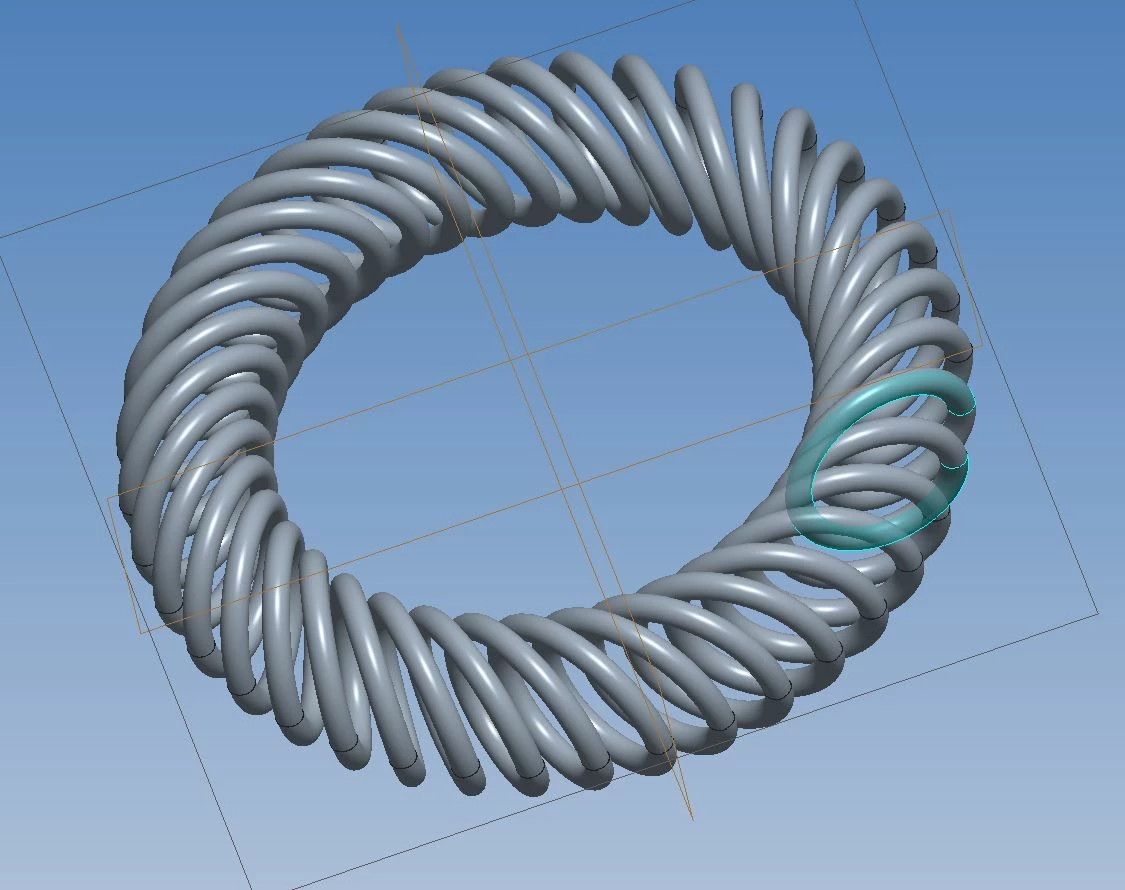

Hi, we need to create a 3d model as shown in the attachment. Please let me know where can get a training to achieve such part. thank you best regards, carlos.







4 replies

T
Tdaugherty16-Pearl
16-Pearl
February 24, 2023

Here's a video I found online that might be helpful to you.



https://www.youtube.com/watch?v=uSu-a1VWN8I

P
19-Tanzanite
pausob19-Tanzanite
19-Tanzanite
February 24, 2023

There are discussions about modeling such shapes on this forum.  See, e.g., Modelling-a-Canted-spring-in-Creo-2-0

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
February 24, 2023

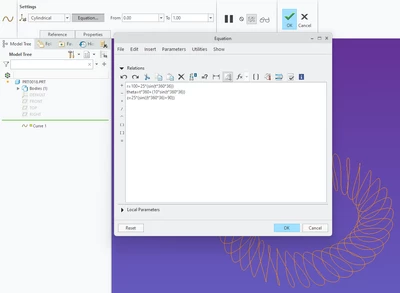

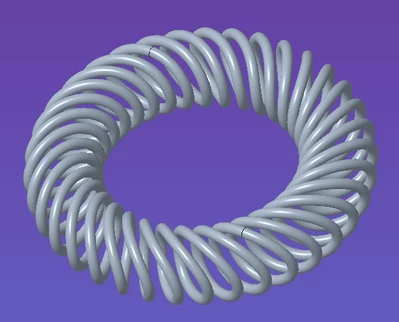

Something like this:





There is always more to learn.
    P
    19-Tanzanite
    pausob19-Tanzanite
    19-Tanzanite
    February 25, 2023

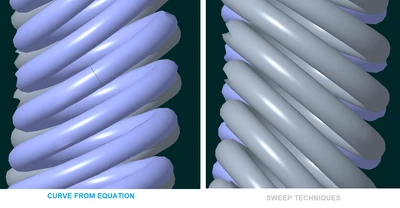

    The equation from curve is definitely simpler than the techniques involving multiple sweeps (e.g. spring.prt.1.zip by gkrishna )  but it does result in slightly different (more curvy?) geometry?


    Not sure whether one or the other is more "physically correct"

    tbraxton
    22-Sapphire II
    tbraxton22-Sapphire II
    22-Sapphire II
    February 24, 2023

    Check out the live demo here for toroidal helices. The parametric equations and live demo provide some quick insight in to the behavoir.



    https://www.demonstrations.wolfram.com/ToroidalHelices/
