Hi All

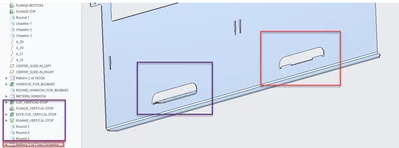

when i try to pattern some features together, the result is not as expected (see picture).

i do not know where the problem is. "normal" pattern did not work, only geometry pattern.

first grouping the feature did not help as well..






creo file is attached



thanks in advance!





Best answer by kdirth

The PLANNER_VERTICAL_STOP feature has the same issue.  Change it to a 0° flat. with end offsets.

1 reply

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
July 6, 2023

Geometry patterns are not possible in sheetmetal.  See CS277485



The external references seem to be preventing a normal pattern.  You will need to remove the external references or pattern each feature separately with a feature pattern.

There is always more to learn.
C
chshasa112-AmethystAuthor
12-Amethyst
July 6, 2023

Hi



which external references do you mean exactly?

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
July 6, 2023

The sketches in the cut and flange have external references.

There is always more to learn.
