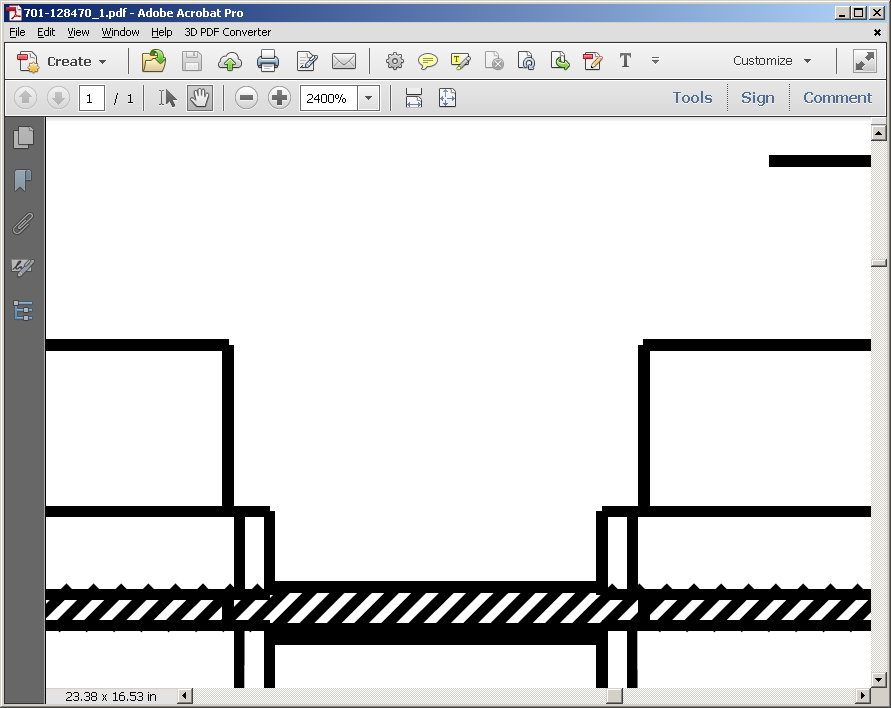

Does anyone know if there is a way to change the line ends to mitre when a PDF is created from a drawing in WF4? Currently they square off as in the image.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

4 replies

R
RonSt.Pierre12-Amethyst
12-Amethyst
September 30, 2016

zoom out?

Tried looking for this a while back ago and could not find anything to adjust this.

I do have a .dop file to auto set printing features (stroke fonts, for example) but mitering is not one of them.

    M
    mashton-215-MoonstoneAuthor
    15-Moonstone
    October 3, 2016

    Yeah it is only when you zoom in that it ooks a bit scrappy. I'm sure I have seen some line end options but it may have been on another CAD package AutoCAD or I-Deas perhaps.

    D
    dschenken1-Visitor
    1-Visitor
    October 4, 2016

    This can be managed using Postscript output and manually editing it to:

    1 setlinecap

    1 setlinejoin

    Then distill with Adobe Acrobat Distiller, Ghostscript, or your favorite.

    In later versions PTC added these for PDF SAVE-AS/EXPORT, but never fixed Postscript.

    I don't think it goes back that far, but the config items PDF_LINECAP and PDF_LINEJOIN

    M
    mashton-215-MoonstoneAuthor
    15-Moonstone
    October 12, 2016

    Dave

    I knew I had seen somthing like that somewhere. I will try it as it might be useful.
