Pipe bend drawing

I haven't done a pipe bend drawing in years and don't have the formats/setups that I had at another company.

What is the coordinate system orientation on the drawing. I seem to remember the orientation is like in my screen below shot but I am not sure.

Best answer by StephenW

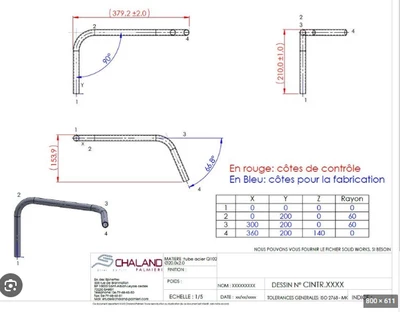

Tubing/pipe bend data drawing for NC type machine.

This was basically what I was looking for. I don't know if the NC machines have specific coordinates orientations but this helped me remember.

14-Alexandrite

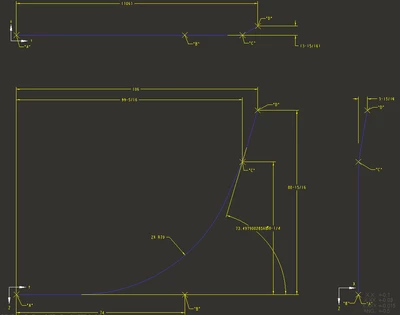

I am not really sure what you are asking here, but as you can see, the three views are all in 2D, using the same csys but oriented to each view.

AuthorAnswer

23-Emerald III

Tubing/pipe bend data drawing for NC type machine.

This was basically what I was looking for. I don't know if the NC machines have specific coordinates orientations but this helped me remember.
