Question

Projecting all edges from a surface

  • January 19, 2015
  • 4 replies
  • 3438 views

Is there a way to project all edges from a surface into a sketch without having to select them all individually?

I am running Creo 3 - M010

Thanks in advance!

    4 replies

    D
    dcox-21-Visitor
    1-Visitor
    January 19, 2015

    Get voting!

    http://communities.ptc.com/ideas/5155

    [Edit: broken link bug rears it's head, attempted to fix...]

    D
    dgschaefer21-Topaz II
    21-Topaz II
    January 19, 2015

    Have you tried the loop functionality within the project tool in sketcher? If your surface has many boundary chains, you'll need to do it multiple times to get each loop (which is what the enhancement David linked to is about).

    G
    GrahameWard1-Visitor
    1-Visitor
    January 19, 2015

    There are two possibilities here. Either Jason is talking about the same situation as what the Product Idea talks about (I voted that up BTW ) or he is referring to a surface a quilt. If a quilt is made up of several surfaces then the loop functionality only picks the loop of an individual surface of the quilt. Most of the time I want the boundary of the entire quilt, not its individual surface. The ability to do that would be pretty handy.

    D
    dcox-21-Visitor
    1-Visitor
    January 19, 2015

    That would be a nice feature, it would take the intent of what you are trying to do by projecting "all" edges. I think that would indeed fix the issue Jason's having.

      J
      JasonPensack1-VisitorAuthor
      1-Visitor
      January 19, 2015

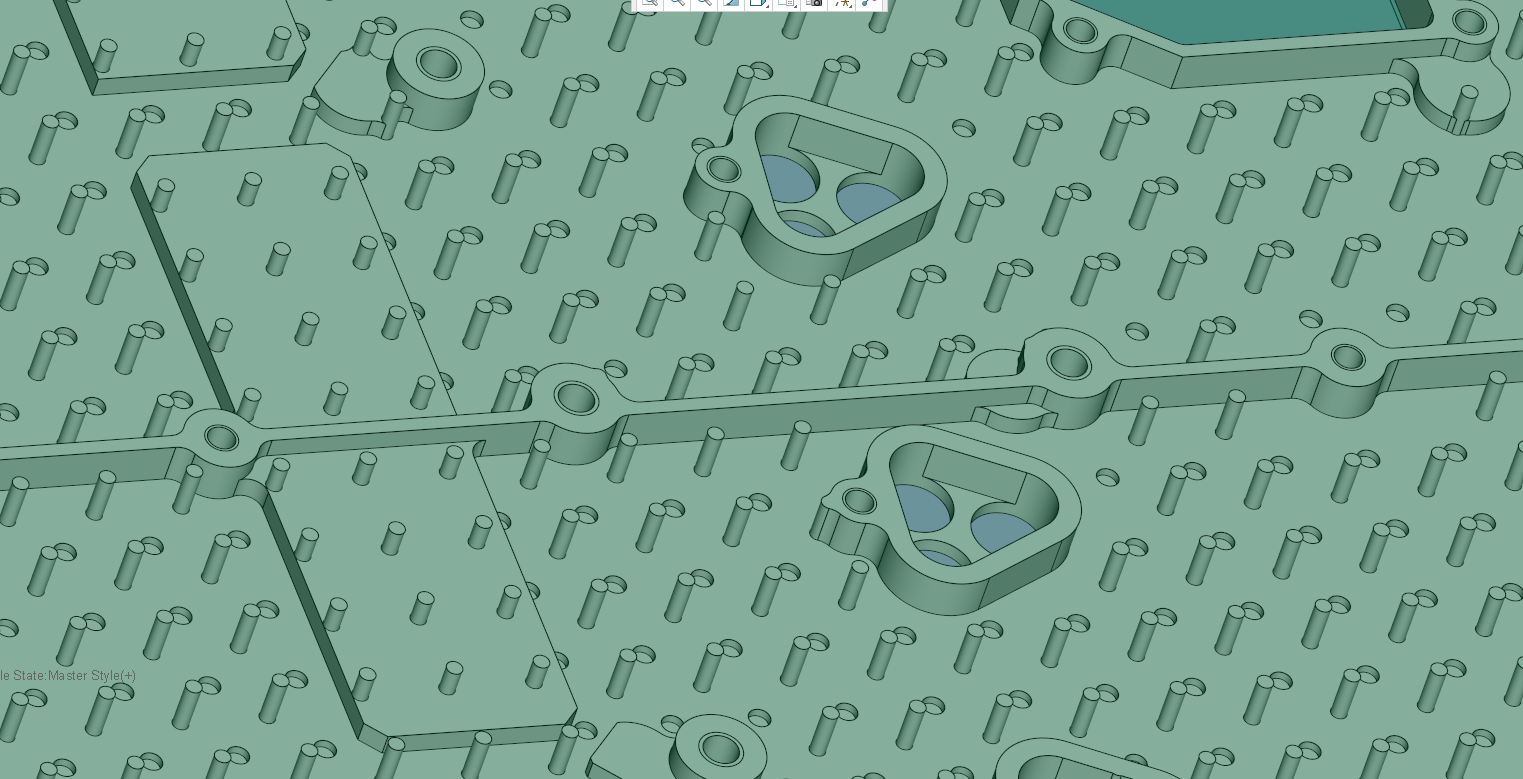

      The surface I would like to project the edges from is a copy and pasted quilt but it would be the same for a face if it worked like I envision it. The surface that I am trying to project is the floor of a pocket that has 100+ bosses protruding upwards from it of all different sizes and shapes. There are also a large number of holes and c'bores, which is why I have to copy and paste the face to create a quilt filling all holes. I would then like to create an extrude cut from this surface to remove the material around the bosses from my manufacturing workpiece. To do this using loops or selecting all edges would take me a very long time. Here is a portion of the geometry.


      In the manufacturing module certain types of NC sequences automatically remove the material from the workpiece but the NC sequence that I am using for this particular feature does not.

        A
        AM_99882191-Visitor
        1-Visitor
        October 15, 2024

        I might be 9 years too late but I was looking for a solution to the same issue. Order of operations is critical, but I created a surface over the extent of the bosses I wanted to project then intersected that surface with the body/part. I made a new sketch and clicked "project" without any edges or surfaces selected. I choose "rule based" and before selecting anything there was an option for "all curves in feature". I hid the body and the surface and clicked on one of the blue lines formed by the intersect feature and it chose and projected everything.
