PTC Creo Parametric Weld Design

Dear team,

I this is Kamlesh from GMMSPL.

Is there any possibility to showcase the Solid Weld Geometry in drafting in a different manner? like some visual other than annotating.

Currently, it is like mixing of geometry line and weld line together and difficult to identify which is the weld geometry and geometry line.

16-Pearl

Hi Kamlesh,

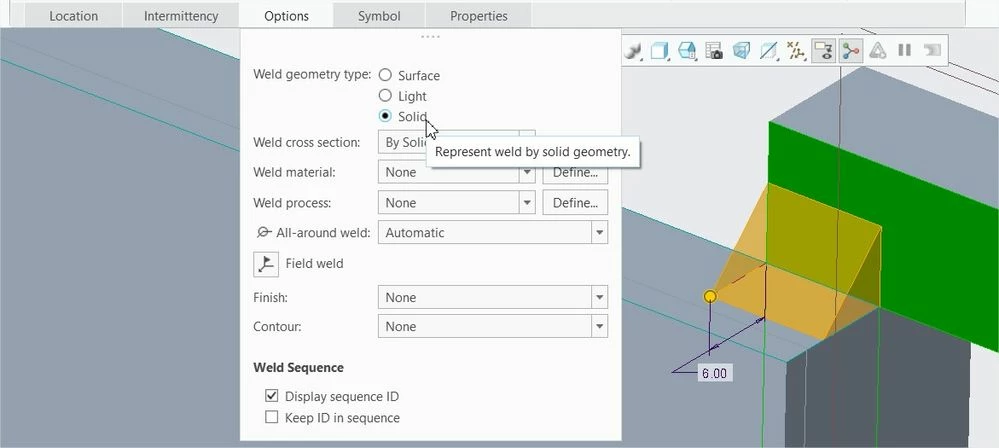

Did you try Solid type?

Author

15-Moonstone

Dear sir,

I tried this and its good to showcase it in the 3d environment. However, I am looking for a solution for drafting.

16-Pearl

What is the problem in the drawing sir? could you send a little image please?
