[Q] Creating a surface that's the mean average of two other surfaces...

  • November 10, 2011
  • 7 replies
  • 2986 views

I think the easiest example is to imagine a sphere (surface revolve) with it's centre on the origin, and a cube (surface extrude) at the same location and big enough to encapsulate the sphere. How would you get the shape that is between the two? A sort of sphere-y cube-y plasticine type of shape?

I expect this is either very hard or very easy. You're not allowed to use extra modules in the solution (ISDX, BMX, etc)

I'd also be curious to know how people would go about creating a shape like this the long way. Oh and you're not allowed to use Creo 1.0's Freestyle feature. We're talking Wildfire 5 Foundation XE only.

Thanks!


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by BrianMartin














I hope that helped!

Thanks!

-Brian

7 replies

BrianMartin13-Aquamarine
13-Aquamarine
November 11, 2011

Hi David...

Do you want this kind of thing to happen automatically... as in having Creo figure it out on it's own? If so... I can't see how to do it without some sort of advanced BMX analysis. If you want to know how to model a semi cubic/semi spherical model on your own, you have a plethora of options at your disposal.

You can use lesser used functions like Local Push, surface offsets, replacement surfaces, and a host of tapered rounds and other features to achieve an organic look. You can also select Insert>Warp and use the sculpt tool (or any of the other warp sub features). These should be available with Foundation XE (at least I think they're not considered surfacing features anymore).

Again, if you want Pro?E to do this for you... you're looking at a much more advanced suite of tools... maybe even Mathcad-driven models?

Thanks!

-Brian

David_M1-VisitorAuthor
1-Visitor
November 13, 2011

Hi Brian,

Well, I'd rather Pro/E do it for me. It seems that such a task should be achievable. Without using equations, it seems like maybe you could create a curve from the origin to the cube (along a cartesian axis), trim it using the sphere and put a point in the middle of the new curve segment, then pattern the curve and point spherically, then wrap a surface around all of the datum points... but I'm not sure how to do that.

I will explore some of the lesser used functions tomorrow as well.

Thanks

BrianMartin13-Aquamarine
13-Aquamarine
November 14, 2011

Hi David...

Without equations of some sort, this is going to be tough. You certainly COULD create a point at 50% of the distance along your trimmed curves. Your going to be limited by how many curves you use (from origin to the cube). The more curves, the better the accuracy. Ideally you'd need to generate at one quadrant of your sphere to generate the right geometry. I can see how you might get away with 1/4 of one quadrant but that's a more complex topic.

The bottom line is... Pro/E won't do this shape for you. You're going to have to work at it. Once you'fve generated a "point cloud", you may be able to build a surface using the points. However, I don't believe you can drape a surface over the points using the normal Pro/E surfacing tools. Maybe the CMM tools in Pro/VERIFY can do something like this but that's beyond my expertise.

I think you can generate the geometry you're looking for by hand. I also think you could develop a Toolkit application to create this geometry automatically. Out of the box though... I think it's going to be a bit tedious.

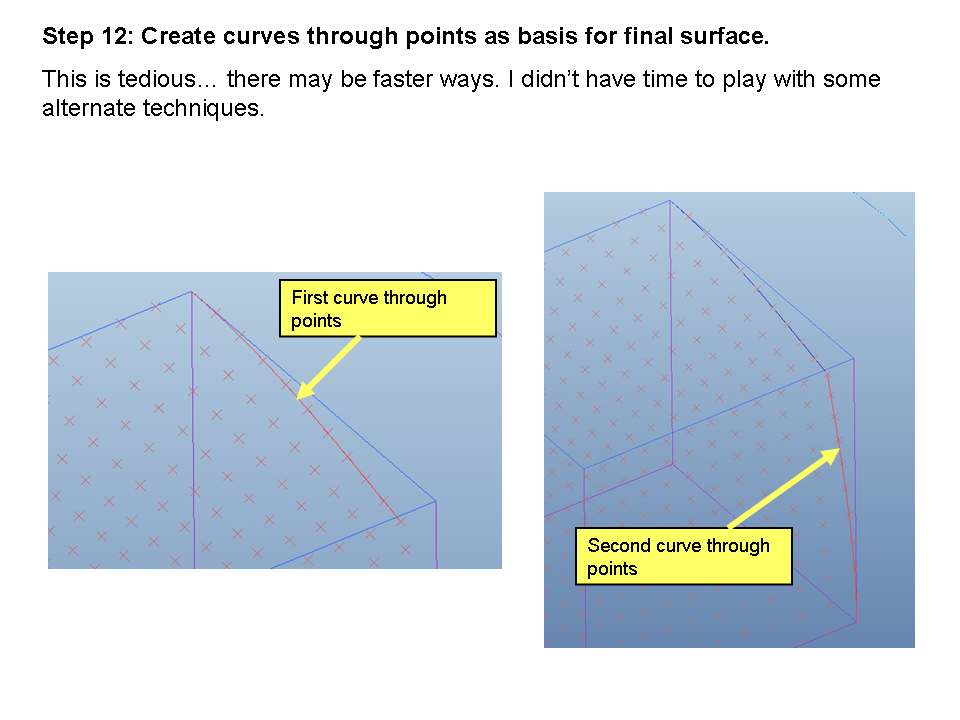

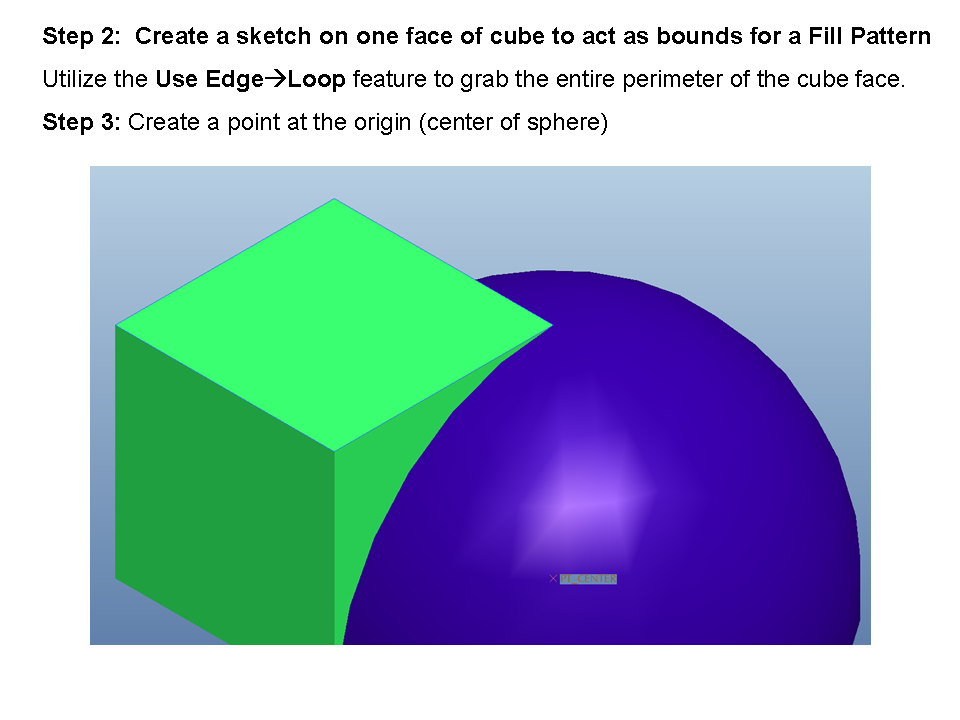

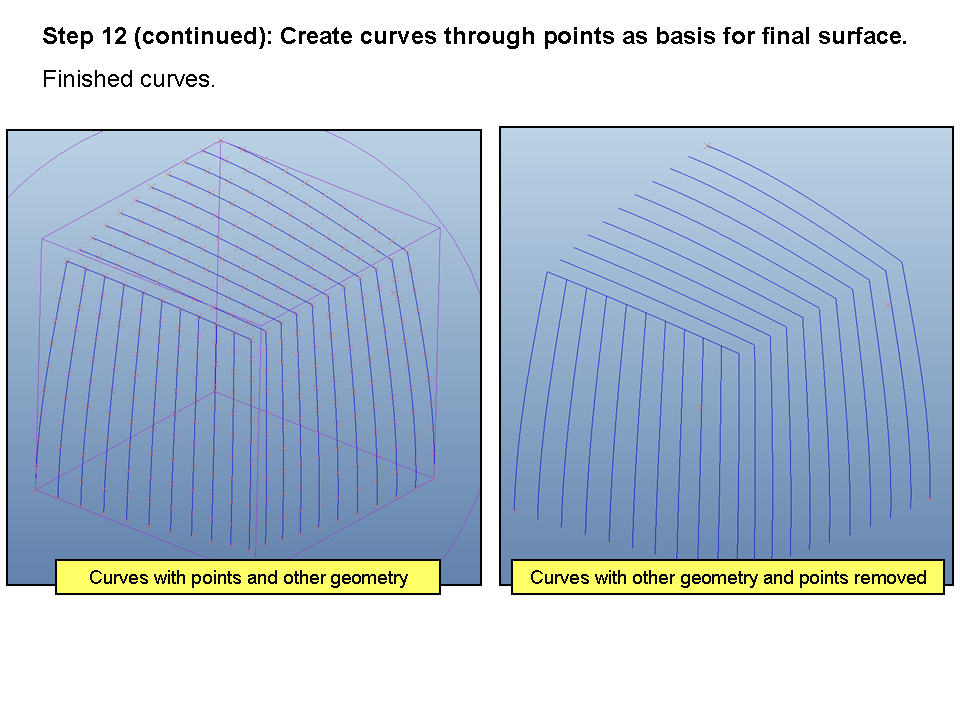

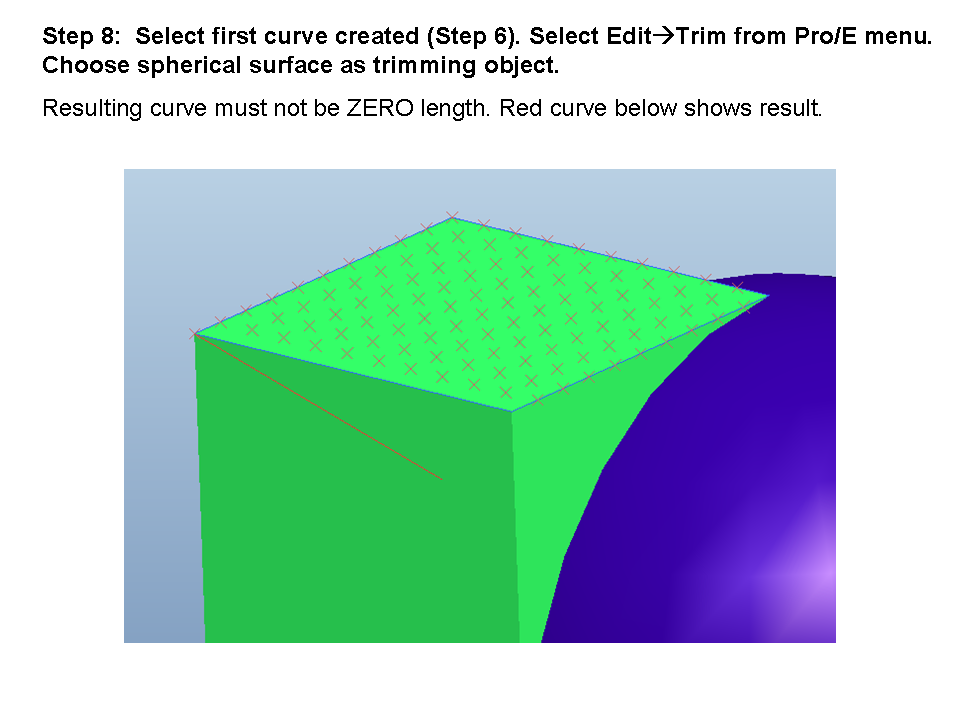

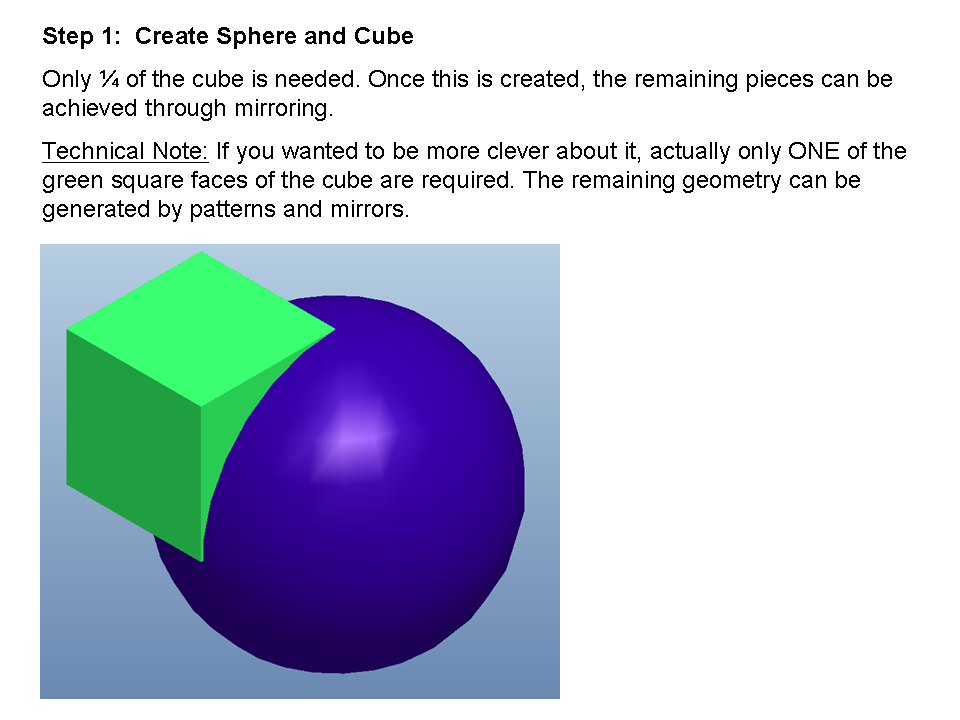

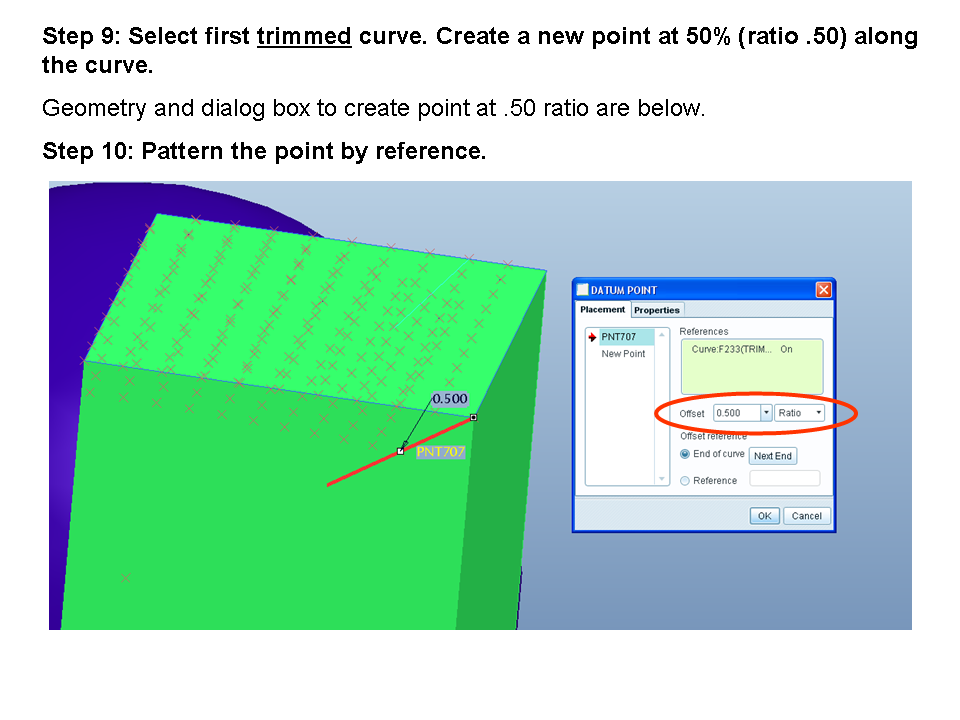

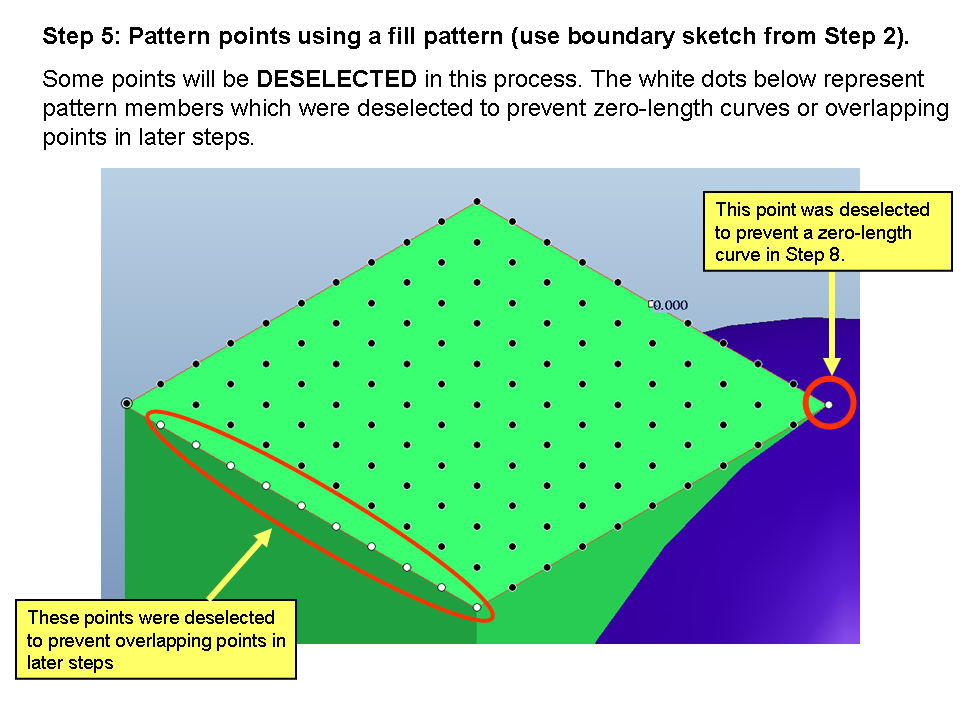

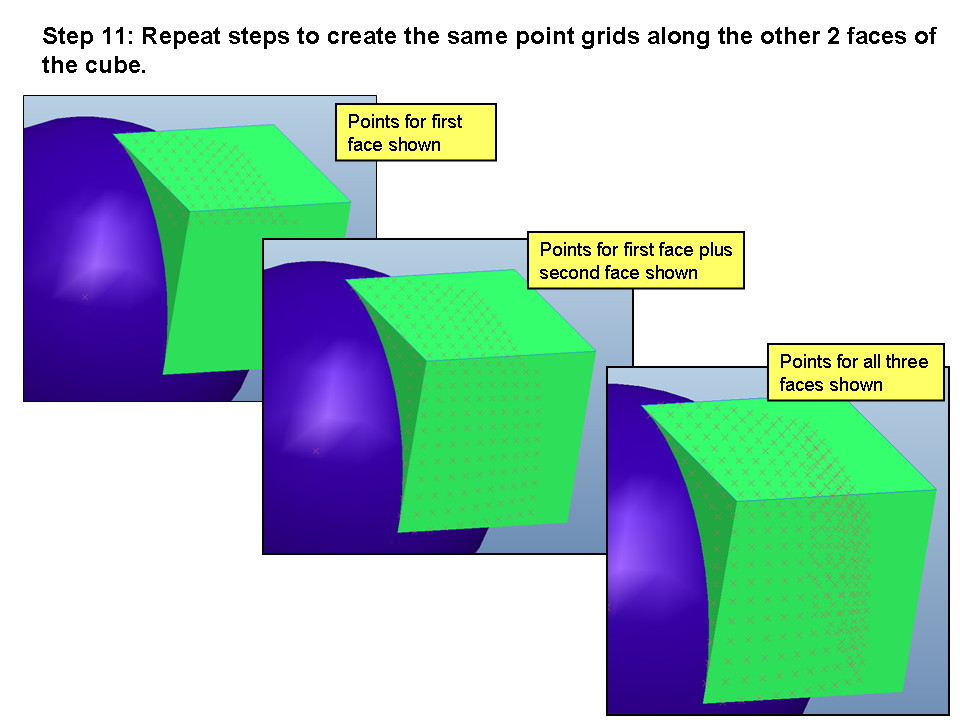

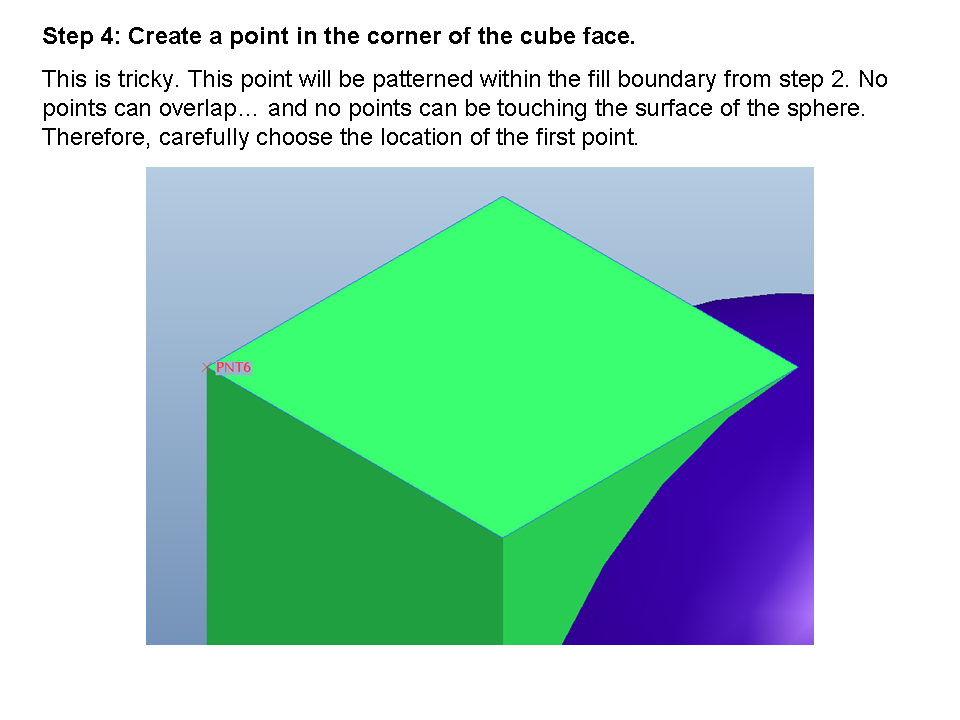

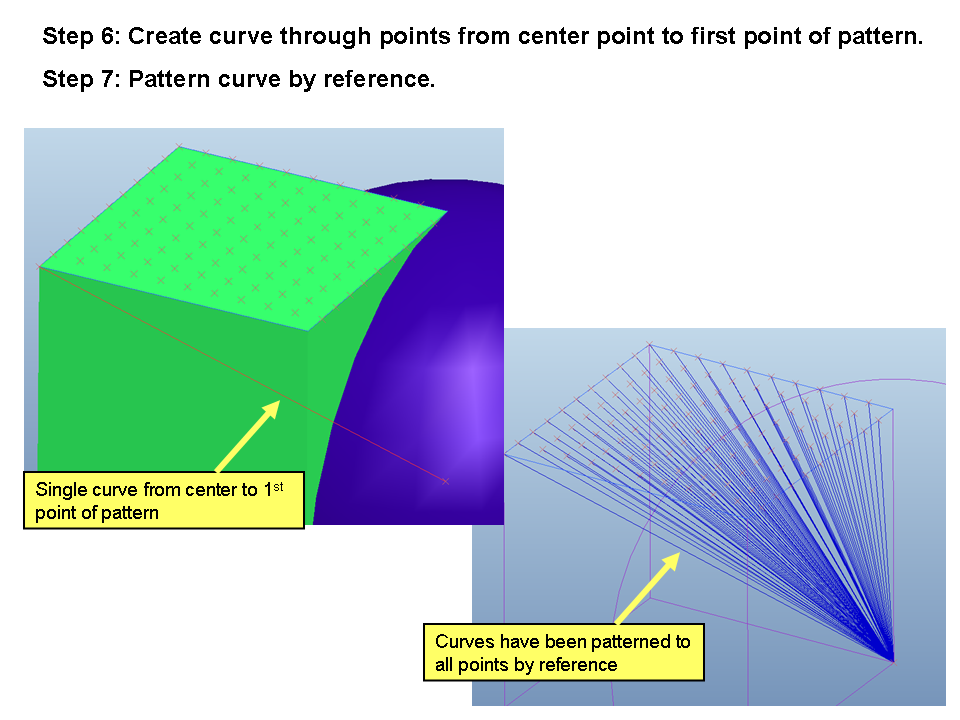

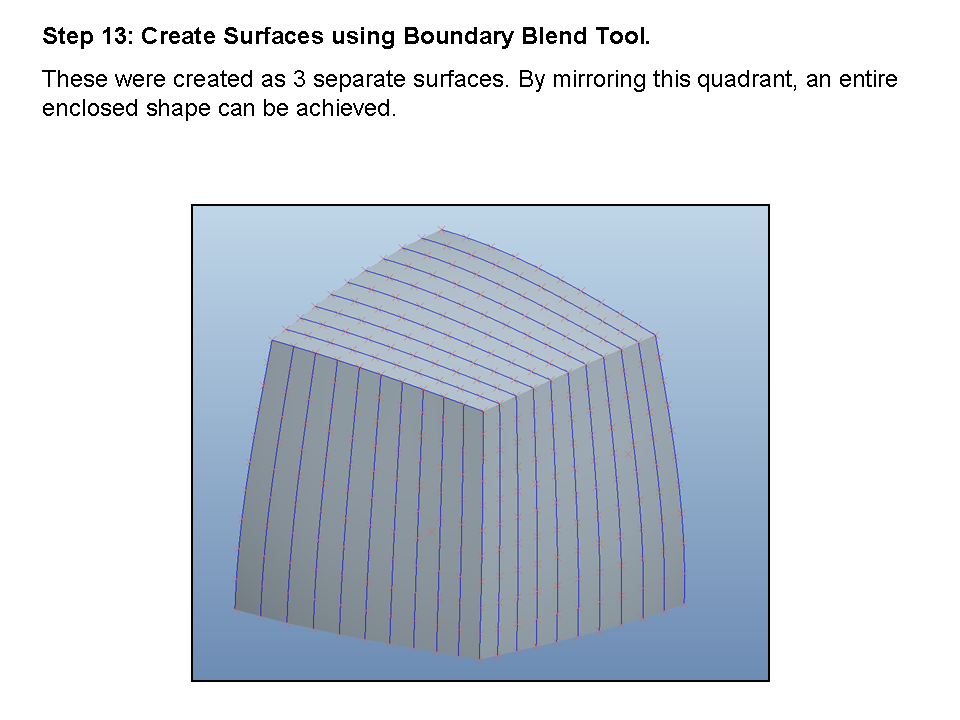

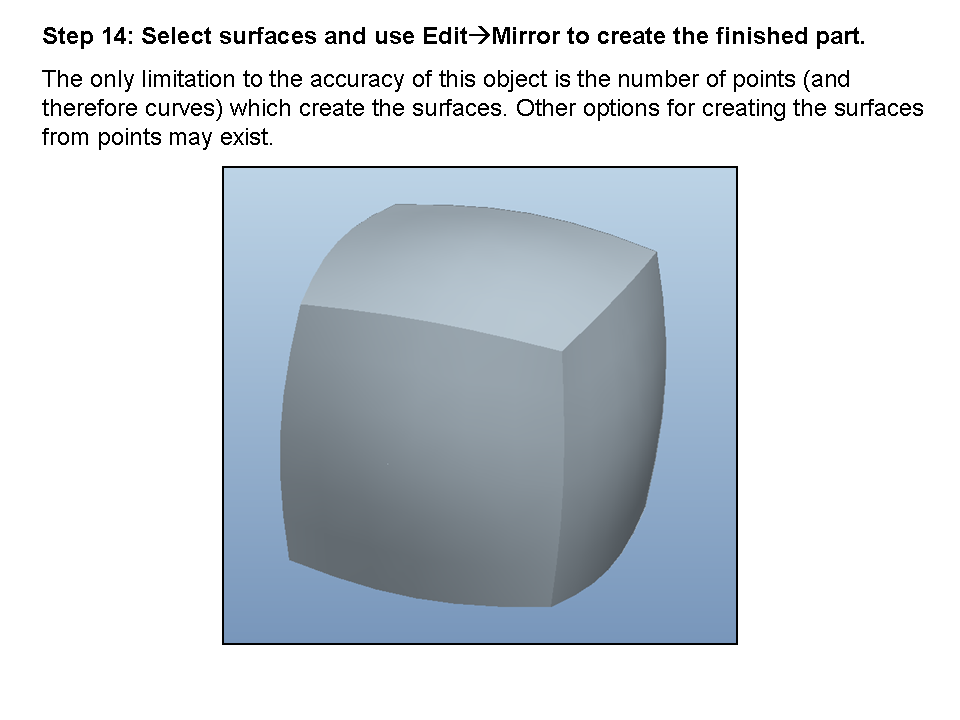

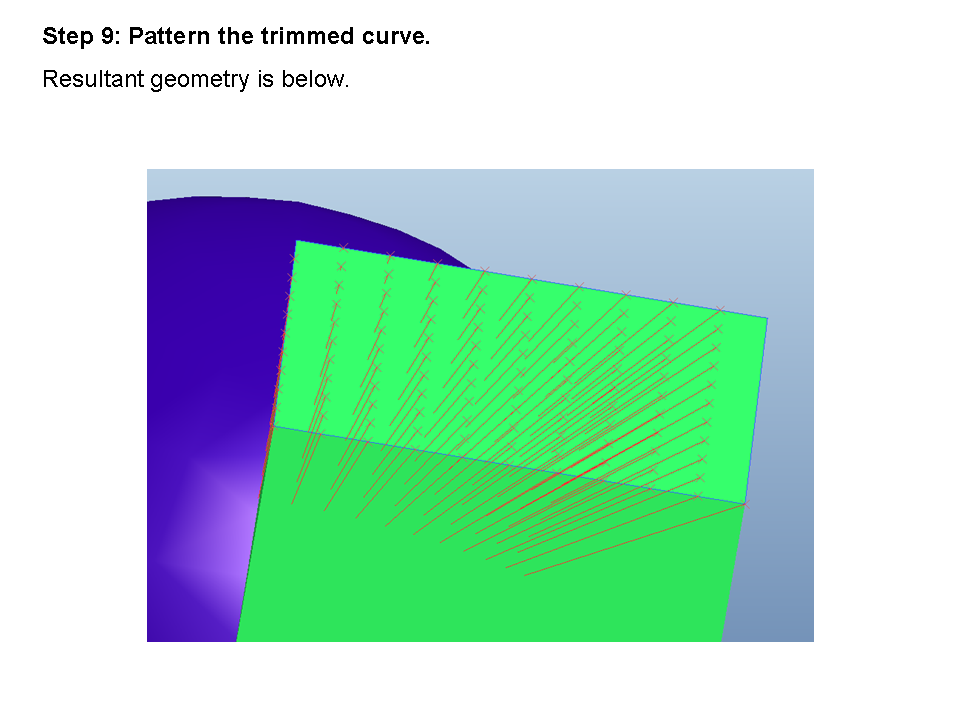

I'll try to make one of these objects really quick and post the results.

Thanks!

-Brian
