reduce bend length

hi,

i have to reduce the length of the bend, how ever the flange length shall remain the same...

in the attached image i have done by doing an extrude cut ..

is there an option in creo to do this ...



Thanks in advance...

HamsterNL
HamsterNLAnswer
18-Opal
July 31, 2018

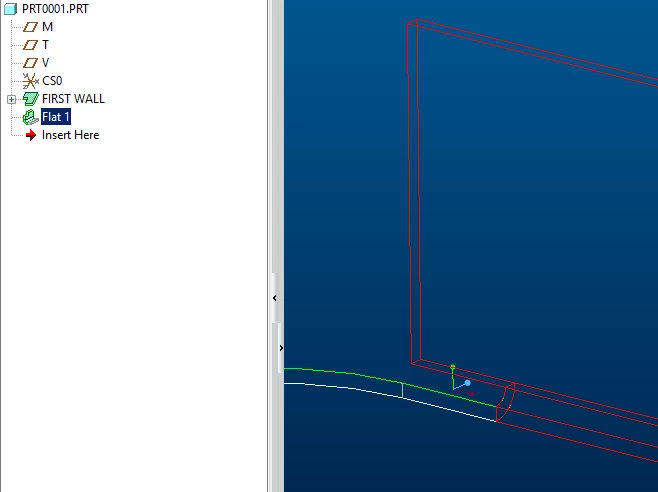

You can create a "User Defined" flange, and sketch the reduced bend. No need for extra features.



User Defined Flange.png

View in thread

3 replies

BenLoosli23-Emerald III
23-Emerald III
July 30, 2018

Don't think so.

You may also do the flange width equal to the bens, then add a secondary flange to the first to get back the width. This method may cause less issues with unbending.

Translate
    HamsterNL
    HamsterNL18-OpalAnswer
    18-Opal
    July 31, 2018

    You can create a "User Defined" flange, and sketch the reduced bend. No need for extra features.



    User Defined Flange.png

    Translate
      vdevan1-VisitorAuthor
      1-Visitor
      August 1, 2018

      Thanks a lot my friend...
