Question

Refit sketch dimensions

  • March 13, 2023
  • 3 replies
  • 1338 views

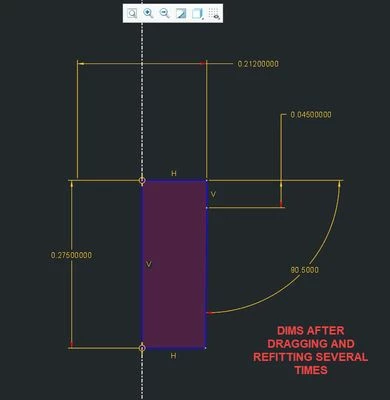

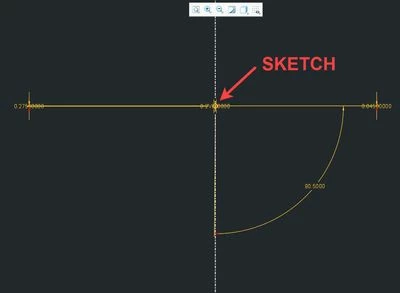

After updating from Creo 4 to Creo 7, we are having problems when redefining sketched hole features.  The dimensions are stretched way out across the screen,  If you drag the dimensions and refit several times, you finally get back to the proper view.  Is there a config setting that I am missing that could solve this problem?





3 replies

B
BenLoosli23-Emerald III
23-Emerald III
March 13, 2023

Check this config.pro setting:

sketcher_refit_after_dim_modify

Default setting is NO, change it to YES and see if that does what you want.

kdirth
kdirth21-Topaz I
21-Topaz I
March 13, 2023

You might also want to look at this setting:

ang_dim_in_screen yes

Default is no.

There is always more to learn.
R
rzukowski13-AquamarineAuthor
13-Aquamarine
March 14, 2023

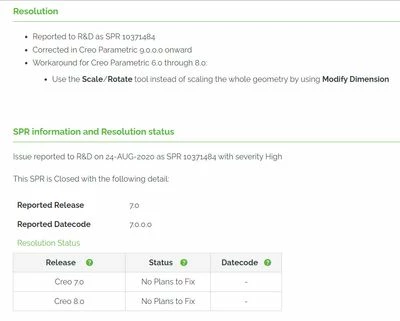

Thanks for your suggestions.  I tried them but to no avail.  I just found the same issue documented in CS329515.  It looks like a bug in Creo 6 thru 8.  Not sure what the Scale/Rotate tool is supposed to do.  With this and other quirks, I'm thinking that Creo 7 was a downgrade from Creo 4 - just my personal opinion.
