Repeat pattern on surface following a curve?

Forum|Forum|11 years ago
February 27, 2015
13 replies
4906 views

Hello,

I am trying to repeat a pattern on a surface.

I would like the pattern to follow a curve (it is a closed curve).

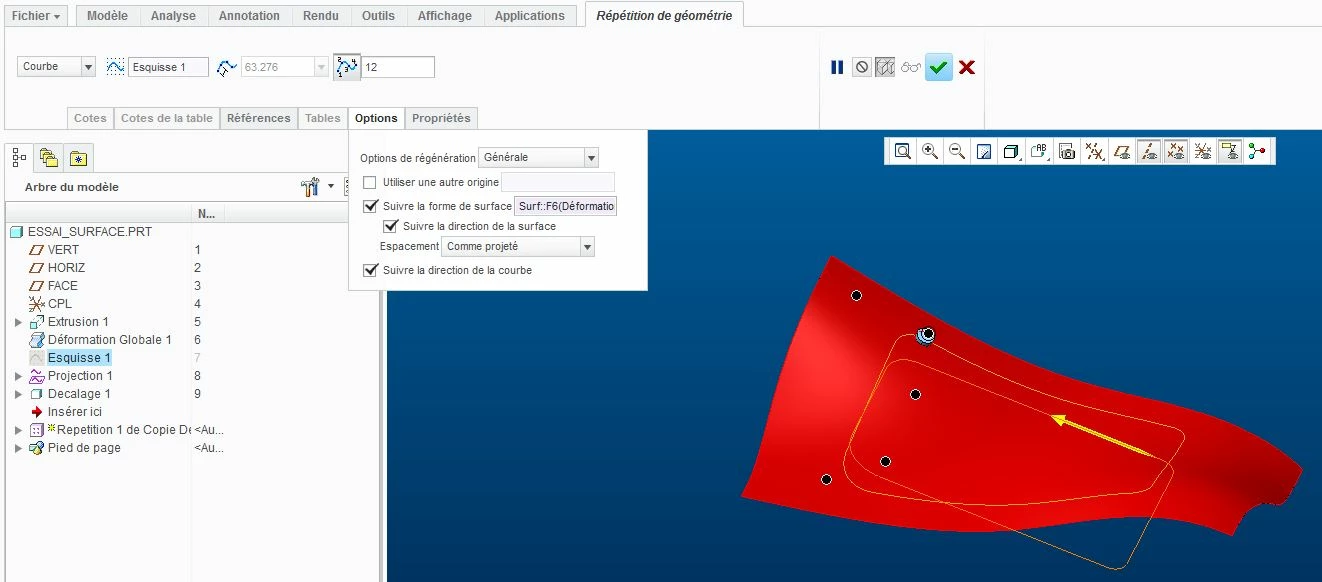

The repetition does not follow the line. Here is screenshot to show you my problem.

Thanks for your help,

-Alisson

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

Best answer by tthangadurai

Hi Alisson,

Can you please check the part now and let me know your requirement achieved or not.

Thangavijay T

T

TomD.inPDX

17-Peridot

In your image, the top checkbox allows you select an alternate origin. This is how you avoid offsets as you are experiencing.

P

ptc-5675800

Author

1-Visitor

Thanks for your reply,

I have tried to select different origins, but it the repetition still doesn't follow the curve.

T

TomD.inPDX

17-Peridot

The alternate origin has to be the point where the original is on the curve.

What happens is that the original origin is referenced to the curve, but the pattern's origin is in what it perceives to be the center of the patterned feature.

I find this highly frustrating specially when it is only slightly off and you miss this important, sometimes critical issue.

Feel free to post the part so someone can have a look. Let us know if it is an academic version or not. Also what version it was created with.

T

tthangadurai

1-Visitor

Hi Alisson,

Can you upload the part to investigate.

Regards

Thangavijay T

J

John.Pryal

1-Visitor

There are numerous posts on this subject over the years. Just do a search on 'pattern curve' & you will see. I attach a part that i once down loaded in response to the same issue, i still reference this part from time to time, if i find myself struggling with pattern curve issues. Also Doug Schaeter once gave a good explanation on curve patterns which i still find useful, i attach that too.

Curve Pattern.PNG
