Question

Ribon cable twisted / how to control it

  • September 29, 2021
  • 1 reply
  • 4130 views

Hello!

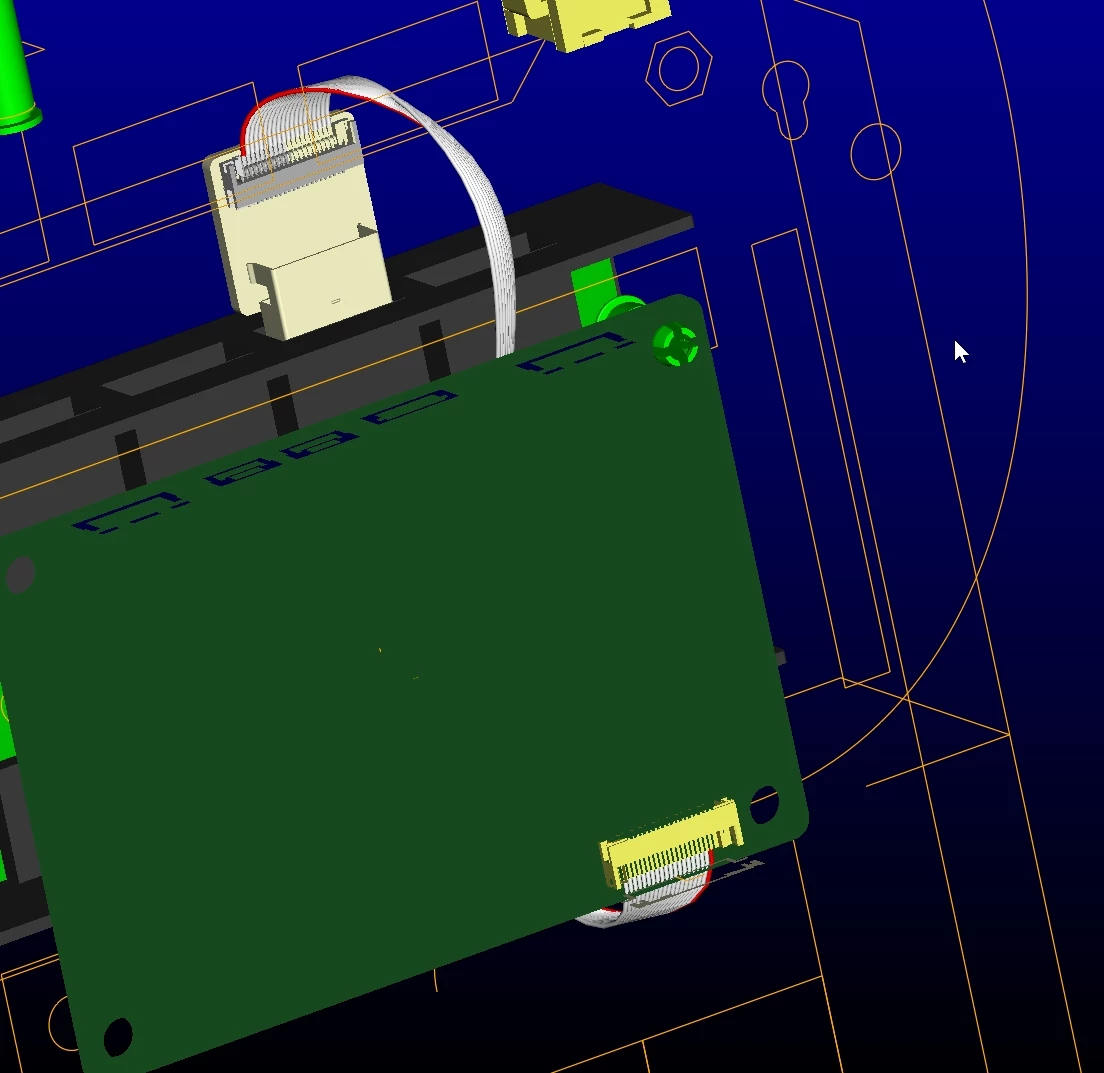

I have the problem, to control the twist of ribon. I rotate the coordinate systems without result. How to do it?

Thank you in advance!



Greetings!

1 reply

tbraxton
22-Sapphire II
September 29, 2021

How is the geometry for the cable created? If it is a sweep then you can use a variable section sweep and "clock" the section using a relation defined as a function of the internal parameter "trajpar". This will enable the twist of the cable as it is swept along the trajectory. You will need to define a clocking reference in the sweep sketch and then add an angle dimension and then write a relation for that angle as a function of trajpar.



This thread may help you get started.

https://community.ptc.com/t5/3D-Part-Assembly-Design/How-to-create-Twisted-wires/td-p/2173

10-Marble
September 29, 2021

No. no.. CABLING!

tbraxton
22-Sapphire II
September 29, 2021

Edit the routing of the cable and include folds and/or bends along the route.
