Can CREO sheet metal module unRoll the part ?

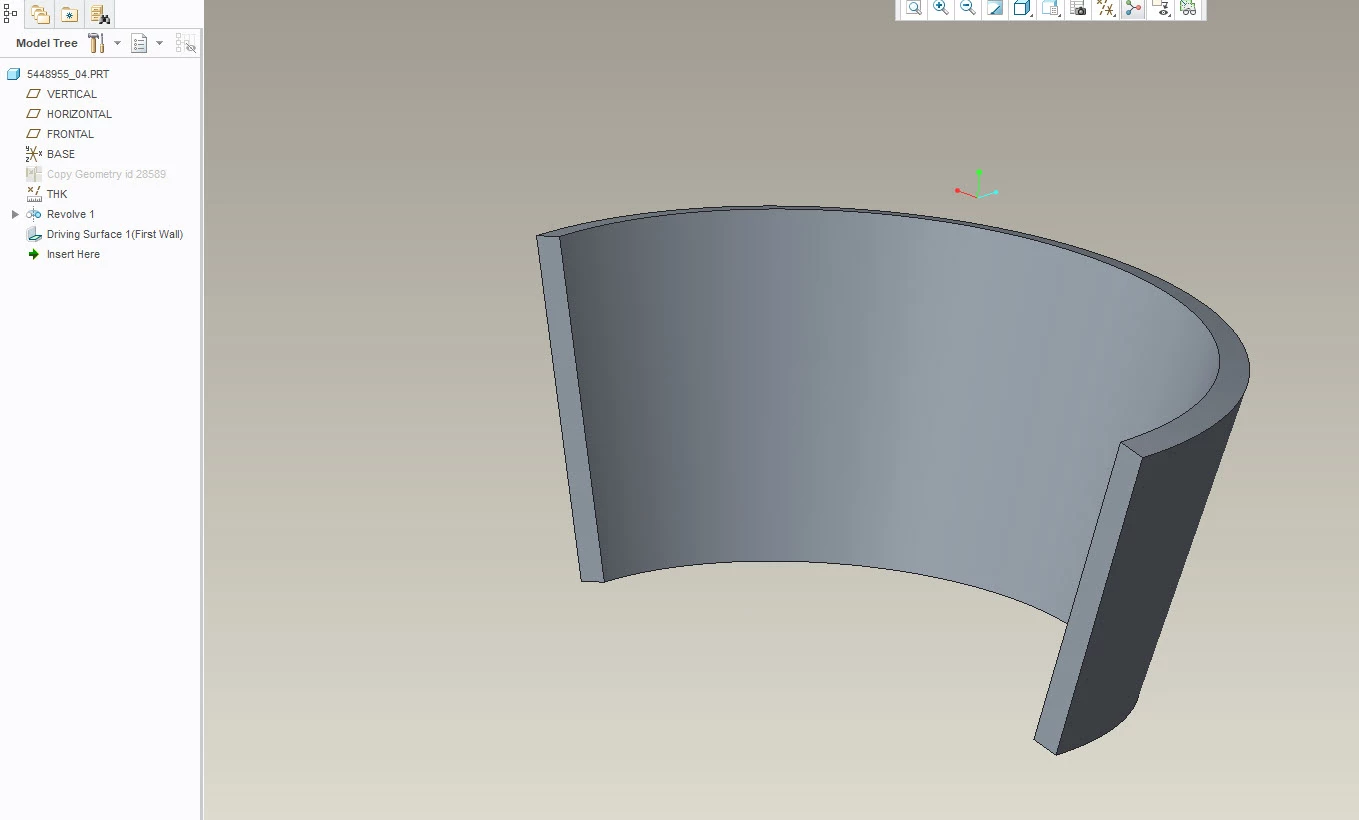

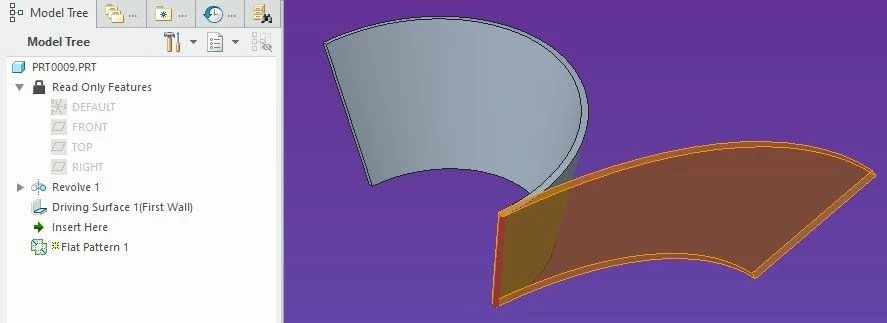

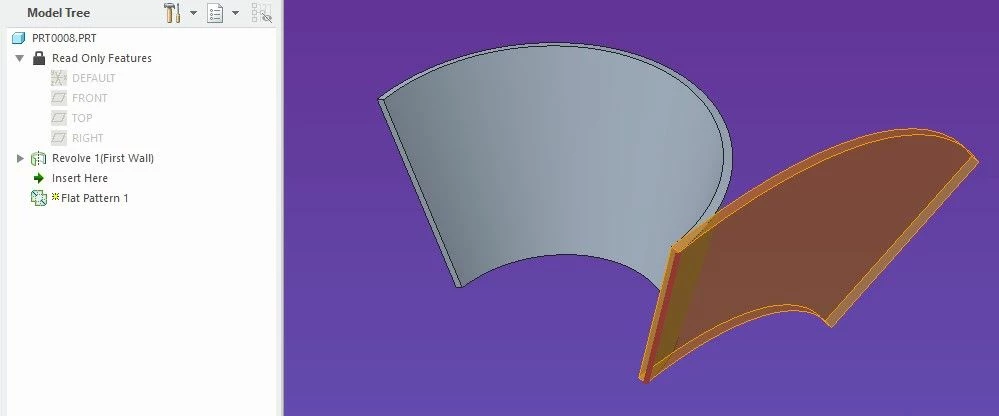

Any hints how to unroll the part shown on picture?

4 replies

23-Emerald III
December 16, 2019

The sheet metal design package is designed to work with bent parts, not rolled ones.

There are other tools to unroll a part. Most involve the neutral axis, since the rolling process on that shape does not really stretch or compress the material the way a bending process does.



PeterP1-VisitorAuthor
1-Visitor
December 20, 2019

Thanks for reply

kdirth
21-Topaz I
January 3, 2020

Yes



I was able to flatten from conversion and built in Sheetmetal.  Unbend also worked.

There is always more to learn.
