Rule Based Simplified Representations

Forum|Forum|1 month ago
February 13, 2026
2 replies
103 views

I have an assembly with two components. Every components has a simplified rep with the same name; UDSR where one feature is excluded. When I create a simplified rep in my assembly, I can select the User Defined Simplified Rep, pick UDSR, from each component. Works perfect. Now I want to create a rule-based simrep, where every component is loaded with the user defined simrep "udsr" in it.

In the rule editor, I am on the Status Tab, selecting Display. Is it possible to search for a user defined simrep with a particular name?

Assembly Design

Best answer by Rubio74

Hi All, I further deepdived into the knowledgebase showed me this:

Article - CS384183 - To create a Simplified Representation by Rule that will evaluate all parts tha…

Many thanks for your reaction. Topic can be closed.

Ruben

C

Chris3

21-Topaz I

When you go into the rule editor, User Defined is not one of the options. I am not sure what option you picked but I don't think this is possible.

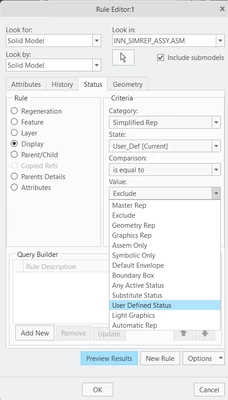

Rule Editor:

Manual Definition:

R

Rubio74

AuthorAnswer

12-Amethyst

Hi All, I further deepdived into the knowledgebase showed me this:

Article - CS384183 - To create a Simplified Representation by Rule that will evaluate all parts tha…

Many thanks for your reaction. Topic can be closed.

Ruben

V

vnamboodheri

Community Manager

Hello @Rubio74,

It looks like you have a response from a community member. If it helped you solve your question please mark the reply as the Accepted Solution.
Of course, if you have more to share on your issue, please let the Community know so other community members can continue to help you.

Thanks,
Vivek N.
Community Moderation Team.
