Hello,

I would like to create a snap line in drawing file. offset Value of this snap line should be governed by parameter value. Is it possible?

Thanks and Regards

Ketan


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

9 replies

M
MartinHanak24-Ruby III
24-Ruby III
October 26, 2016

No, it is not possible.

MH

K
Ketan_Lalcheta2-ExplorerAuthor
2-Explorer
October 26, 2016

Hi,

Is there any other way to do so? I need to move dimension based on master model for different values.

Thanks and Regards

Ketan

S
sxu-31-Visitor
1-Visitor
October 26, 2016





K
Ketan_Lalcheta2-ExplorerAuthor
2-Explorer
October 26, 2016

Hi,

Thanks for your time. I am trying to understand what you have done. Could you please share details in English?

Thanks and Regards

Ketan

S
sxu-31-Visitor
1-Visitor
October 26, 2016

You can create this wire in the 3 d model, can get the projection lines in engineering drawing.

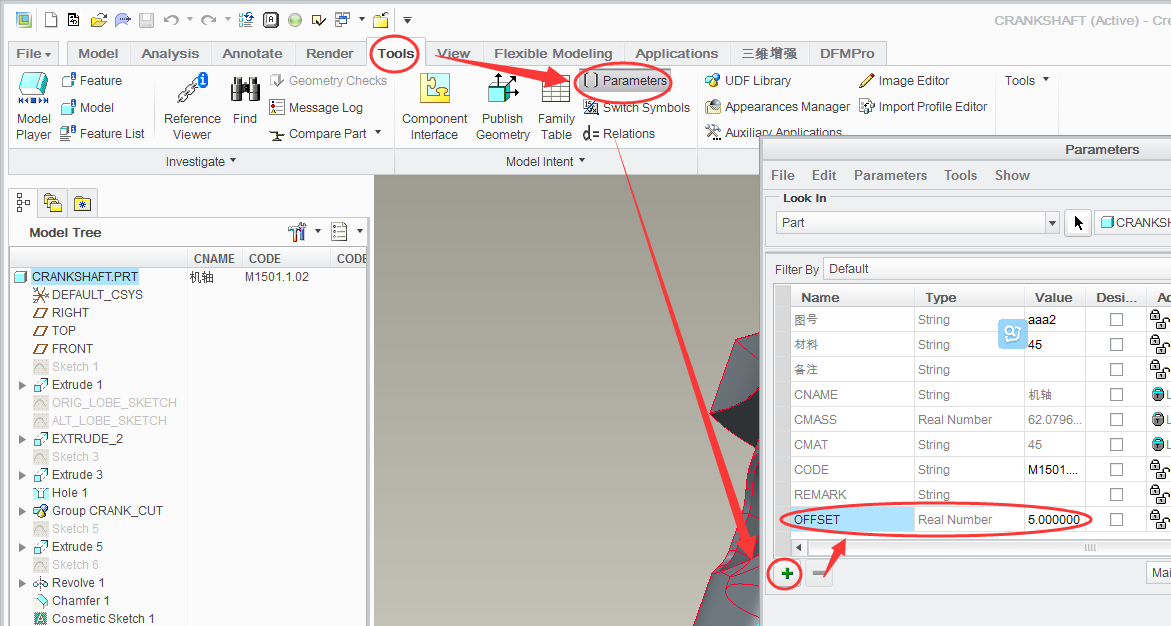

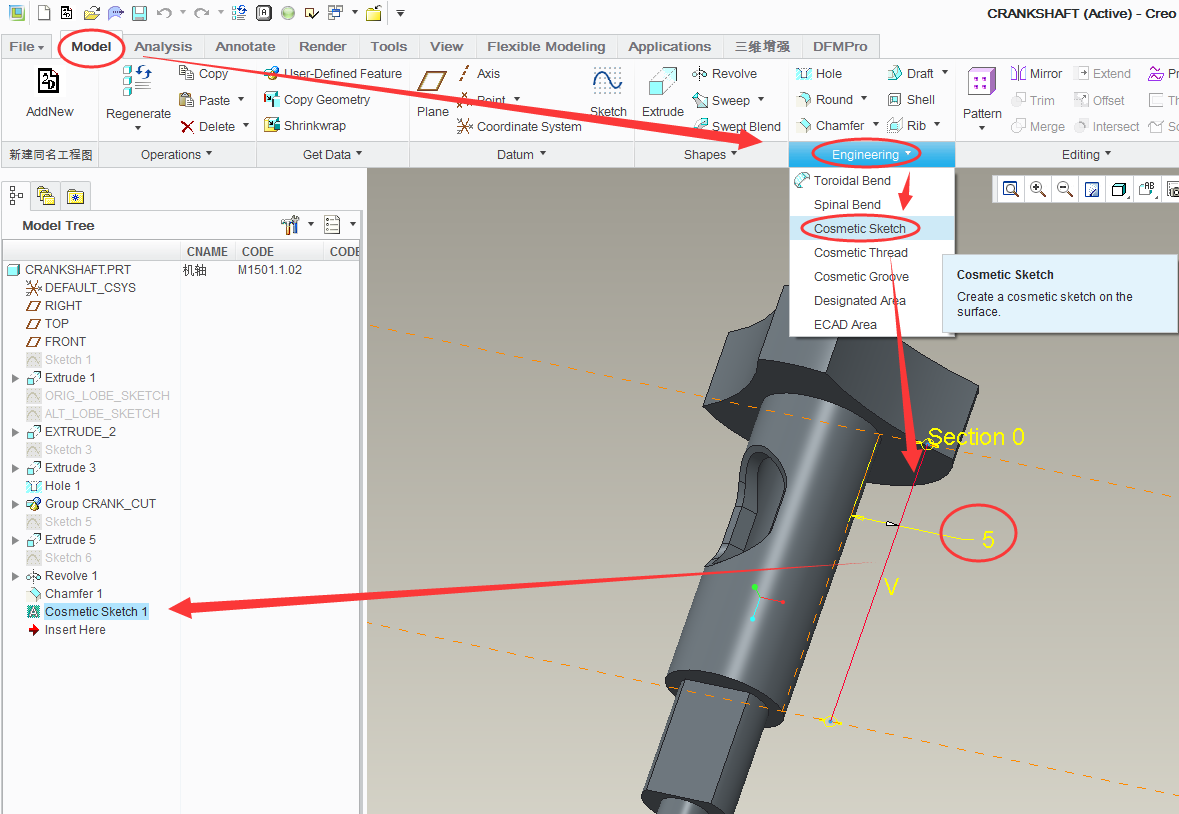

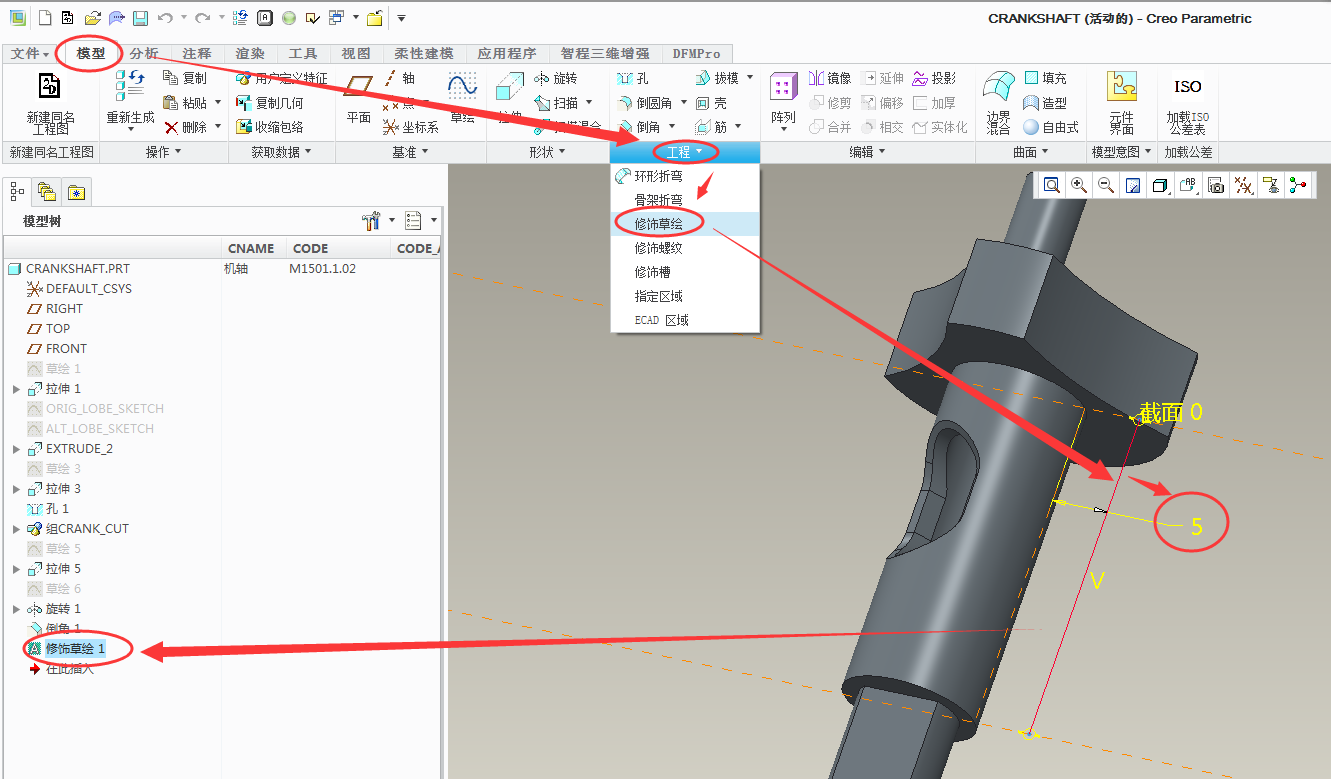

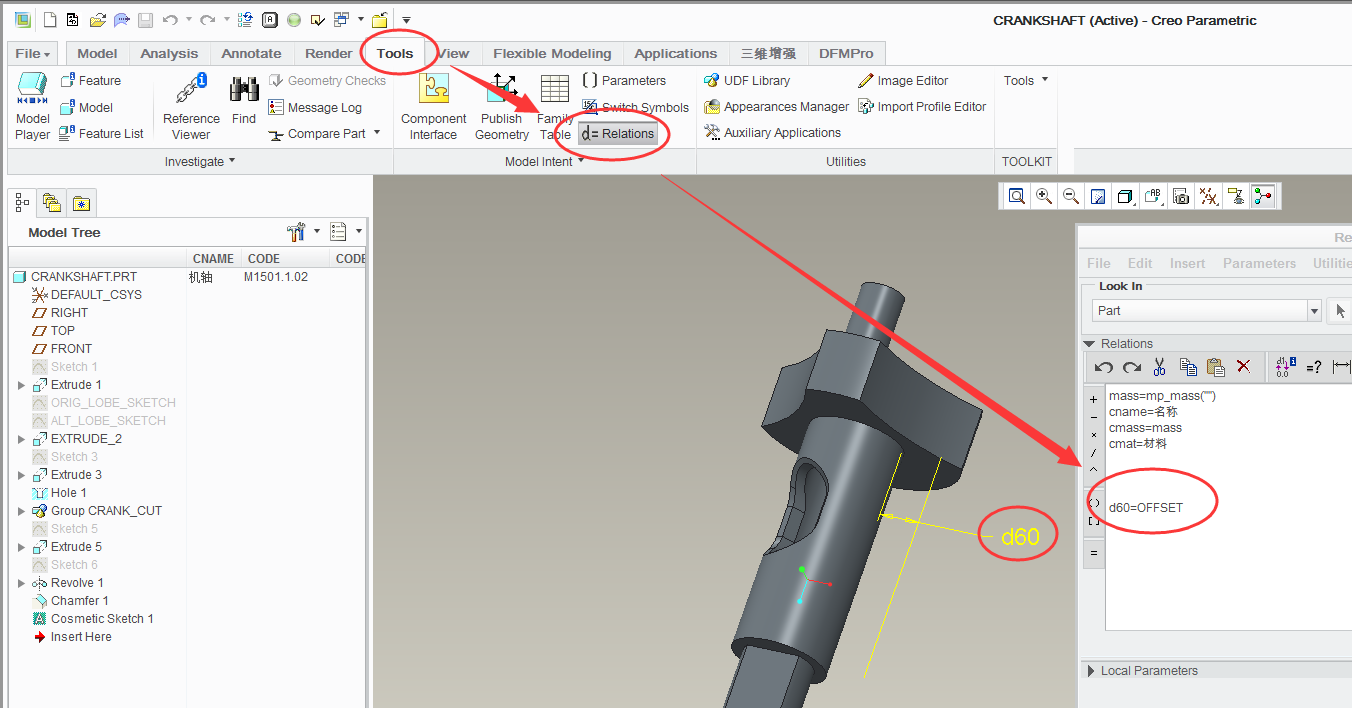

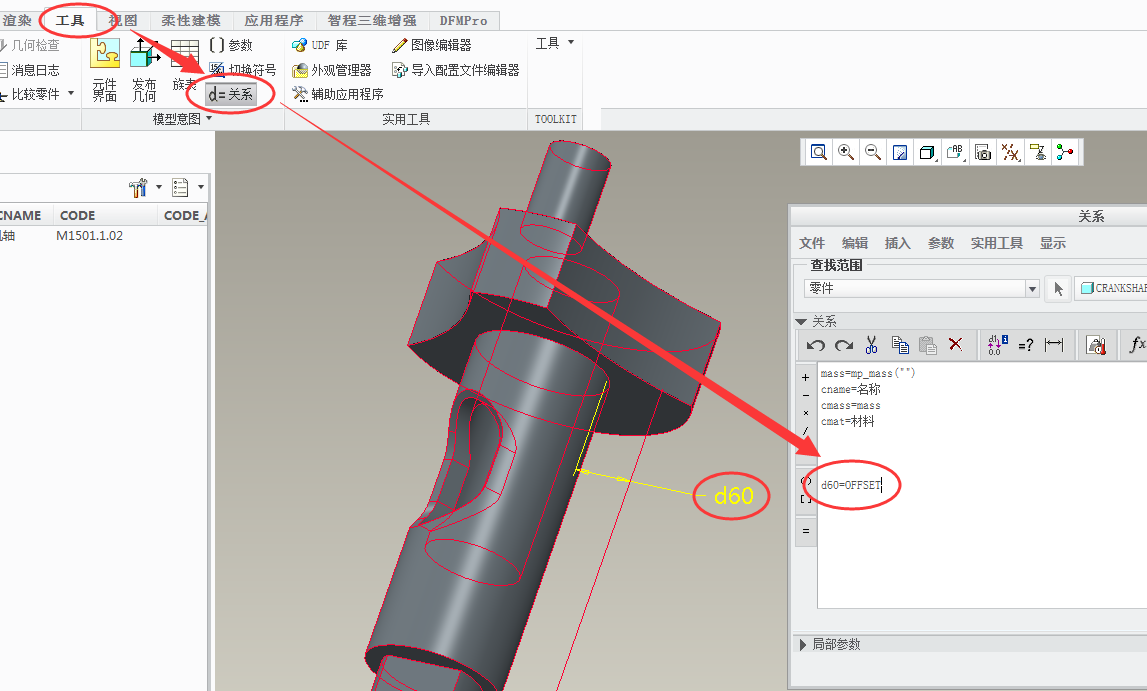

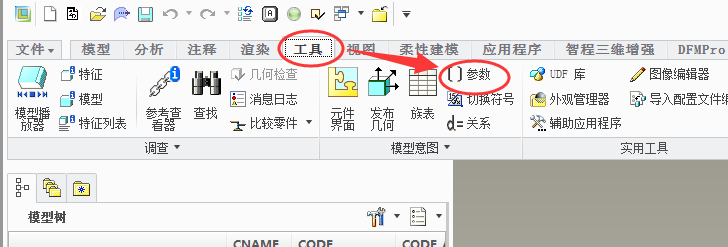

Operating as follows:
