Scripting multiple part creation with changing colours?

  • January 13, 2016
  • 8 replies
  • 5408 views

I don't know if this is possible.

I'm creating a library of electronic resistors that are identified with colour bands.

There are potentially a few hundred to create which would be an incredibly laborious task.

Is there a way to assign a variable for each colour and then have some kind of automated / macro / script that will generate (create and save as a STEP file) a list of parts by providing a table of values for each of the variable colours?

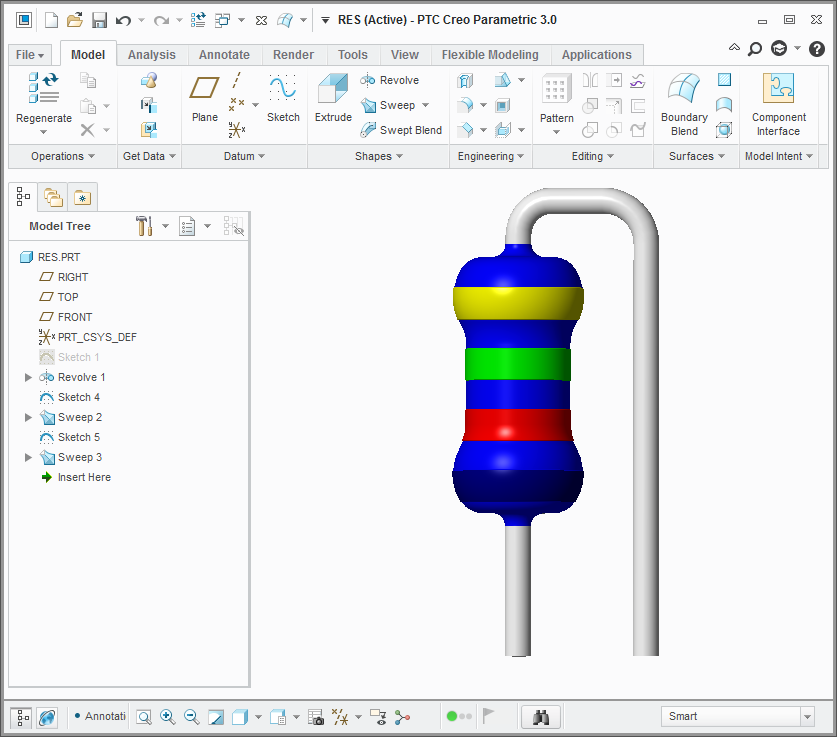

Each resistor has between 3 and 5 colour bands (example below has 4).


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by gkoch

Hello Xavier,

The Pro/PROGRAM functionality should be a basic functionality which is always available (under Tools > Model Intent > Program), but it's not so often used.

It's like simple programming of parts, expanding relations by adding the option to prompt user input and suppress/resume features by conditional statements. So you can calculate parameters based on input and then modify or suppress features based on the calculation. Makes designs very flexible.

But since you probably need the parts only once to export them and then probably never again, I agree that it may be easiest to change the export files (if you know where you need to change them).

Anyway, FYI I attached a very simple example model (colors are applied to different offset surfaces):

Regenerate to get the GET INPUT menu, select Enter to change design, checkmark parameters to change (there is only one for simplicity) and enter color following the prompt

Regards,

Gunter
